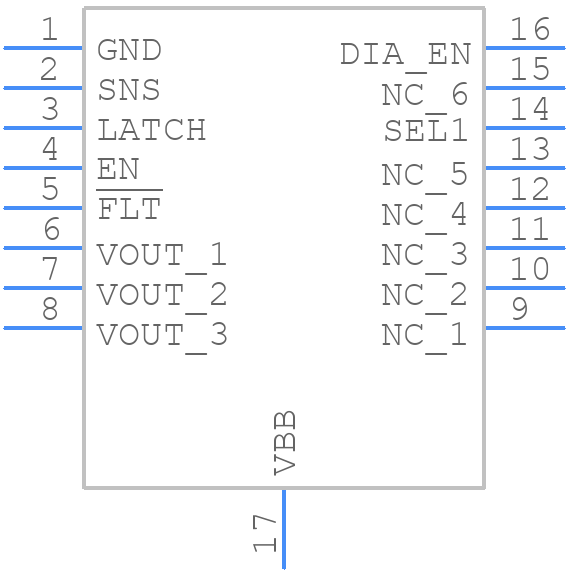

TPS1HB35FQPWPRQ1 - Texas Instruments

TPS1HB35FQPWPRQ1 Details

• Manufacturer Part Number:

  TPS1HB35FQPWPRQ1

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  HTSSOP-16

• Country Of Origin:

  Taiwan

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Built-in Protections:

  TRANSIENT; OVER CURRENT; THERMAL; UNDER VOLTAGE

• Driver Number of Bits:

  1

• High Side Driver:

  YES

• Input Characteristics:

  STANDARD

• Interface IC Type:

  BUFFER OR INVERTER BASED PERIPHERAL DRIVER

• JESD-30 Code:

  R-PDSO-G16

• JESD-609 Code:

  e4

• Length:

  5 mm

• Moisture Sensitivity Level:

  3

• Number of Channels:

  1

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Characteristics:

  OPEN-SOURCE

• Output Current Flow Direction:

  SINK

• Output Current-Max:

  5 A

• Output Peak Current Limit-Nom:

  33.3 A

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HTSSOP

• Package Equivalence Code:

  TSSOP16,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Screening Level:

  AEC-Q100

• Seated Height-Max:

  1.2 mm

• Supply Voltage-Max:

  18 V

• Supply Voltage-Min:

  6 V

• Supply Voltage-Nom:

  6 V

• Surface Mount:

  YES

• Technology:

  BIPOLAR

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Turn-off Time:

  235 µs

• Turn-on Time:

  235 µs

• Width:

  4.4 mm
