The maximum input voltage that can be applied to the TPS2081D is 5.5V, as specified in the absolute maximum ratings section of the datasheet. Exceeding this voltage can damage the device.
To ensure proper power-up and configuration, follow the recommended power-up sequence: apply VCC, then enable the device by setting EN high, and finally apply the input voltage to the VIN pin. Also, make sure to follow the recommended layout and decoupling guidelines to minimize noise and ensure stable operation.
The EN (enable) pin is used to turn the device on or off. When EN is high, the device is enabled and operates normally. When EN is low, the device is disabled and enters a low-power shutdown mode. Use the EN pin to control the power state of the device, for example, to implement power-saving modes or to reset the device.
The output capacitor value depends on the specific application requirements, such as output voltage, output current, and ripple voltage. As a general guideline, use a capacitor with a value between 1uF and 10uF, and ensure it has a suitable voltage rating and ESR (equivalent series resistance) for the application. Consult the datasheet and application notes for more detailed guidance.
The thermal shutdown temperature of the TPS2081D is typically around 150°C. If the device junction temperature exceeds this value, the device will shut down to prevent damage. Ensure proper thermal design and heat sinking to keep the device temperature within the recommended operating range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2081D Overview

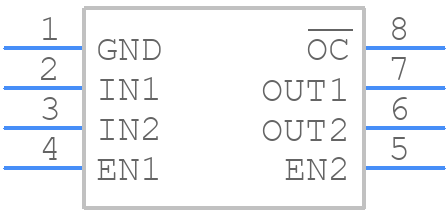

Use the download button to access the TPS2081D schematic symbol, PCB footprint, and 3D model.
