A good PCB layout for the TPS22970YZPR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. TI provides a recommended PCB layout in the datasheet and in application notes.
To ensure stability, make sure to follow the recommended component values and PCB layout. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the device has a built-in compensation network, so no external compensation is required.
The TPS22970YZPR can handle input voltages up to 5.5V, but it's recommended to operate within the specified input voltage range of 2.7V to 5.5V for optimal performance and reliability.
The TPS22970YZPR is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's recommended to follow the thermal design guidelines in the datasheet and to consider using thermal management techniques such as heat sinks or thermal interfaces.
To troubleshoot issues with the TPS22970YZPR, start by checking the input voltage, output voltage, and current. Verify that the device is properly connected and that the PCB layout is correct. Use an oscilloscope to check for oscillations or noise on the output. Consult the datasheet and application notes for troubleshooting guides and FAQs.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS22970YZPR Overview

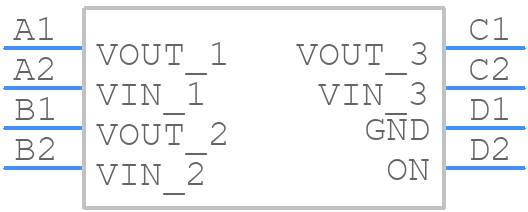

Use the download button to access the TPS22970YZPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS22,
or try a keyword search, such as Peripheral Drivers
