A good PCB layout for the TPS22975DSGT involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input and output with ceramic capacitors. If oscillations occur, try adding a small resistor (1-10 ohms) in series with the output capacitor.
The TPS22975DSGT can handle input voltages up to 5.5V, but it's recommended to keep the input voltage below 5V to ensure reliable operation and to prevent damage to the device.
The TPS22975DSGT is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at high temperatures to ensure reliable operation. Additionally, ensure that the device is properly heatsinked and that the PCB is designed to handle high temperatures.
To troubleshoot issues with the TPS22975DSGT, start by checking the input voltage, output voltage, and output current. Use an oscilloscope to check for oscillations or noise on the output. Verify that the input and output capacitors are properly connected and that the PCB layout is correct. If the issue persists, try replacing the device or checking for damage to the device or surrounding components.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS22975DSGT Overview

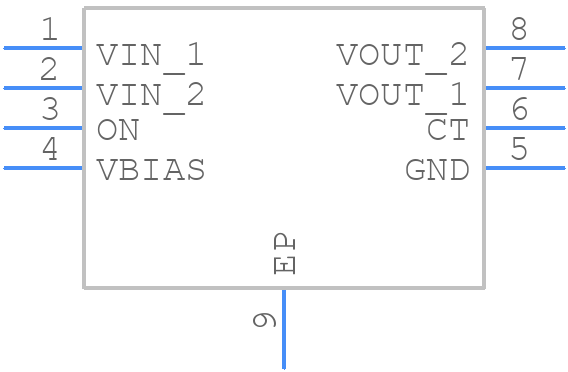

Use the download button to access the TPS22975DSGT schematic symbol, PCB footprint, and 3D model.
