TPS22975NDSGR - Texas Instruments

Description: 5.7V, 6A, 16mΩ Load Switch with Adjustable Rise Time & Optional QOD for Cost-Conscious Applications

Download TPS22975NDSGR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

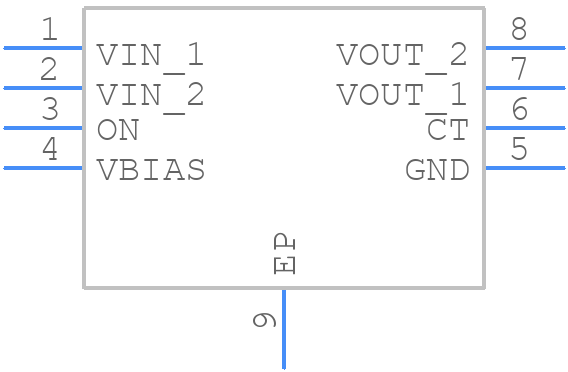

TPS22975NDSGR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS22975NDSGR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - TPS22975NDSGR
click to zoom
3D Models
TPS22975NDSGR - Texas Instruments - 3D model - Small Outline No-lead - TPS22975NDSGR
click to zoom

TPS22975NDSGR Details

  • Manufacturer Part Number:

    TPS22975NDSGR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-05-14

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Built-in Protections:

    THERMAL

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current Flow Direction:

    SINK

  • Output Current-Max:

    6 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max:

    5.7 V

  • Supply Voltage-Min:

    0.6 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

TPS22975NDSGR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS22975NDSGR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. TI provides a recommended PCB layout in the datasheet and application notes.
  • To ensure stability, make sure to follow the recommended component values and PCB layout, and ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the device's output should be decoupled from the input with a ferrite bead or a resistor to prevent oscillation.
  • The TPS22975NDSGR can handle input voltages up to 5.5V, but it's recommended to keep the input voltage below 5V to ensure reliable operation and to prevent damage to the device.
  • The TPS22975NDSGR is rated for operation up to 85°C, but it's recommended to derate the device's performance at higher temperatures. Consult the datasheet for thermal derating information and ensure proper thermal management in your design.
  • To troubleshoot issues with the TPS22975NDSGR, start by checking the input voltage, output voltage, and current consumption. Use an oscilloscope to check for oscillations or noise on the output. Consult the datasheet and application notes for troubleshooting guides and FAQs.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS22975NDSGR Overview

Use the download button to access the TPS22975NDSGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS22, or try a keyword search, such as Peripheral Drivers
