SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Total Power Output-Max:
30 W
Trim/Adjustable Output:
NO
Width:
4.4 mm
TPS23754PWP-1 Frequently Asked Questions (FAQs)
A good PCB layout for the TPS23754PWP-1 involves placing the device close to the PoE input, using a solid ground plane, and keeping the power traces short and wide. Additionally, it's recommended to use a common mode choke and a TVS diode for ESD protection.
To ensure proper power-up and configuration, make sure to follow the recommended power-up sequence, which involves applying the input voltage, then the enable signal, and finally the clock signal. Also, ensure that the device is properly configured through the I2C interface.
Thermal management is crucial for the TPS23754PWP-1. Ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the thermal pads. Also, consider the device's thermal shutdown feature, which can help prevent overheating.
To troubleshoot issues with the TPS23754PWP-1, start by checking the device's status registers through the I2C interface. Verify that the input voltage and current are within the recommended range, and check for any fault conditions such as overvoltage or overtemperature. Also, ensure that the device is properly configured and powered up.
When using the TPS23754PWP-1 in a high-reliability or safety-critical application, ensure that you follow Texas Instruments' guidelines for functional safety and reliability. This includes using the device within its recommended operating conditions, implementing redundant systems, and following proper design and testing procedures.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS23754PWP-1 Overview

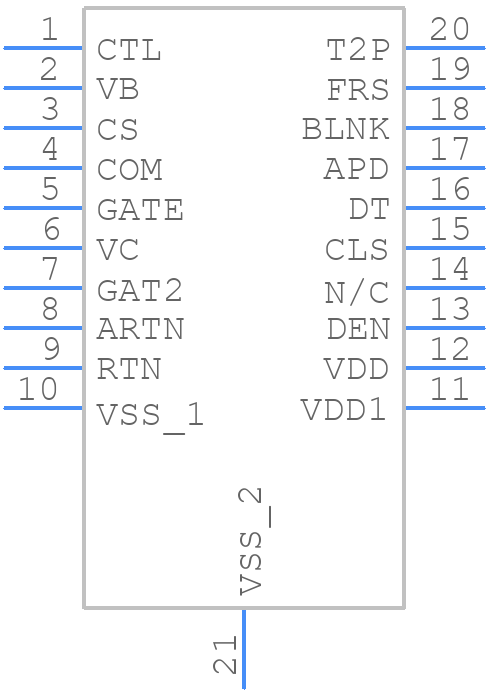

Use the download button to access the TPS23754PWP-1 schematic symbol, PCB footprint, and 3D model.
