TPS23754PWPR-1 - Texas Instruments

Description: Powers up to 30-W (Input) PDs • DC-DC Control Optimized for Isolated Converters • Supports High-Efficiency Topologies • Complete PoE Interface • Enhanced Classification per IEEE 802.3at With Status Flag • Adapter ORing Support • Programmable Frequency With Synchronization • Robust 100-V, 0.5-Ω Hotswap MOSFET • –40°C to 125°C Junction Temperature Range • Industry Standard PowerPAD™ HTSSOP-20

Download TPS23754PWPR-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

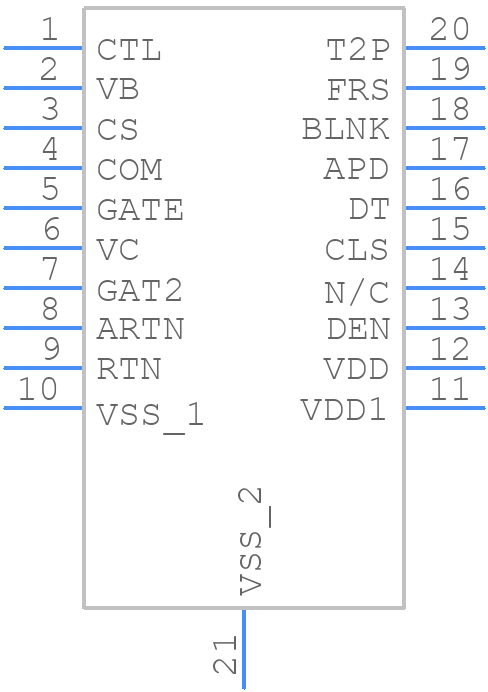

TPS23754PWPR-1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS23754PWPR-1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP (R-PDSO-G20)
click to zoom
3D Models
TPS23754PWPR-1 - Texas Instruments - 3D model - Small Outline Packages - PWP (R-PDSO-G20)
click to zoom

TPS23754PWPR-1 Details

  • Manufacturer Part Number:

    TPS23754PWPR-1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    PoE POWER SOURCING EQUIPMENT CONTROLLERS

  • Input Voltage-Max:

    57 V

  • Input Voltage-Min:

    15.7 V

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Power Output-Max:

    30 W

  • Trim/Adjustable Output:

    NO

  • Width:

    4.4 mm

TPS23754PWPR-1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS23754PWPR-1 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The input capacitor should have a low ESR and be rated for the input voltage. A 10uF to 22uF ceramic capacitor is a good choice. The output capacitor should be a low-ESR ceramic or polymer capacitor with a value of 10uF to 47uF. The capacitor values and types should be chosen based on the specific application requirements and the desired output ripple voltage.
  • The TPS23754PWPR-1 is rated for operation from -40°C to 105°C. However, the device may not be able to deliver its full current capability at the highest temperatures. The device should be derated for high temperatures and high currents.
  • The TPS23754PWPR-1 has a built-in overcurrent protection feature that can be enabled by connecting a resistor between the OCP pin and the GND pin. The value of the resistor determines the overcurrent threshold. A lower resistor value will trigger the overcurrent protection at a lower current level.
  • Yes, the TPS23754PWPR-1 is a high-reliability device that is suitable for automotive and other high-reliability applications. It is AEC-Q100 qualified and has a wide operating temperature range, making it suitable for use in harsh environments.
