TPS23757PW - Texas Instruments

Description: Texas Instruments TPS23757PW, DC-DC Controller, 57 V, DC to DC Converter, 278 kHz, 20-Pin, TSSOP

Download TPS23757PW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

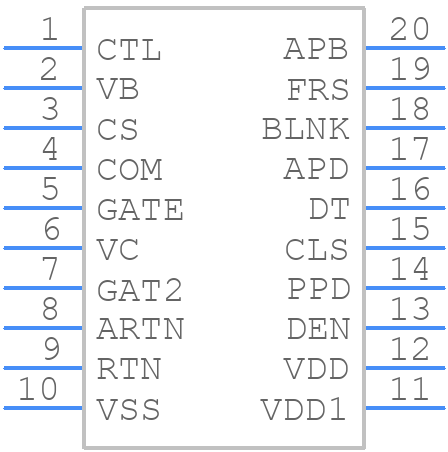

Symbol
TPS23757PW - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS23757PW - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0020A_2025
click to zoom
3D Models
TPS23757PW - Texas Instruments - 3D model - Small Outline Packages - PW0020A_2025
click to zoom

TPS23757PW Details

  • Manufacturer Part Number:

    TPS23757PW

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    20

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    57 V

  • Input Voltage-Min:

    9.3 V

  • Input Voltage-Nom:

    10.2 V

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.535 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    1.2 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    278 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TPS23757PW Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS23757PW involves placing the device close to the PoE input, using a solid ground plane, and keeping the high-current paths short and wide. TI provides a recommended layout in the datasheet and application notes.
  • The TPS23757PW requires a 3.3V or 5V power supply for the internal logic, and the EN pin should be pulled high to enable the device. Additionally, the I2C interface should be configured correctly to access the device's registers.
  • The TPS23757PW has a thermal pad that should be connected to a solid ground plane to dissipate heat. Ensure good airflow, use a heat sink if necessary, and follow the thermal design guidelines in the datasheet to prevent overheating.
  • Use a logic analyzer or oscilloscope to monitor the I2C bus and debug the communication. Check the device's registers and status bits to identify the issue. Consult the datasheet and application notes for troubleshooting guidelines.
  • The TPS23757PW is designed for standard IEEE 802.3af/at PoE applications. For non-standard applications, consult with TI's support team to determine feasibility and potential modifications required.
