Texas Instruments provides a recommended PCB layout in the TPS23770PWP evaluation module documentation, which includes guidelines for component placement, trace routing, and thermal management. Following this layout can help minimize noise, reduce EMI, and improve overall performance.
The input capacitor should be selected based on the input voltage ripple, output current, and operating frequency. A general guideline is to choose a capacitor with a capacitance value of at least 10uF and a voltage rating of 1.5 to 2 times the input voltage. Additionally, the capacitor's ESR (Equivalent Series Resistance) should be low to minimize voltage ripple.
The TPS23770PWP is capable of delivering up to 3.5A of output current, but this is dependent on the input voltage, output voltage, and thermal conditions. It's essential to check the device's thermal performance and power dissipation to ensure reliable operation.
The TPS23770PWP has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor divider network. The resistor values should be chosen to set the desired overcurrent threshold. Additionally, the device also has a thermal shutdown feature that will turn off the device if the junction temperature exceeds 150°C.
The TPS23770PWP is rated for operation up to 125°C, but it's essential to consider the device's power dissipation and thermal performance in high-temperature environments. The device's junction temperature should be kept below 150°C to ensure reliable operation. It's recommended to use thermal management techniques such as heat sinks or thermal interfaces to keep the device within its operating temperature range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS23770PWP Overview

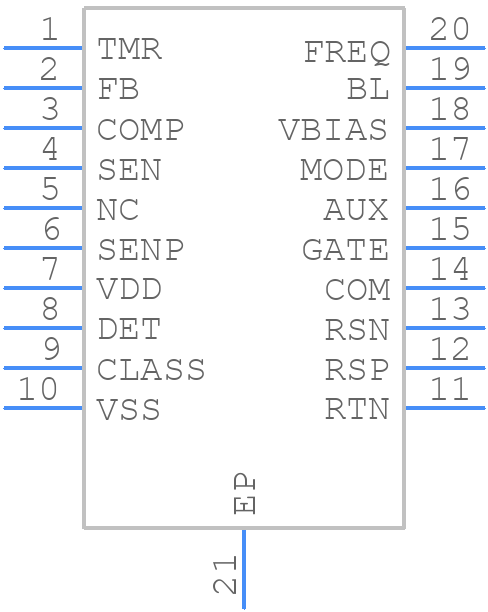

Use the download button to access the TPS23770PWP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS23,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
