TPS23785BPWPR - Texas Instruments

Description: Power Switch ICs - POE / LAN Hi-Pwr Hi-Eff PoE PD & DC-DC Cntlr

Download TPS23785BPWPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

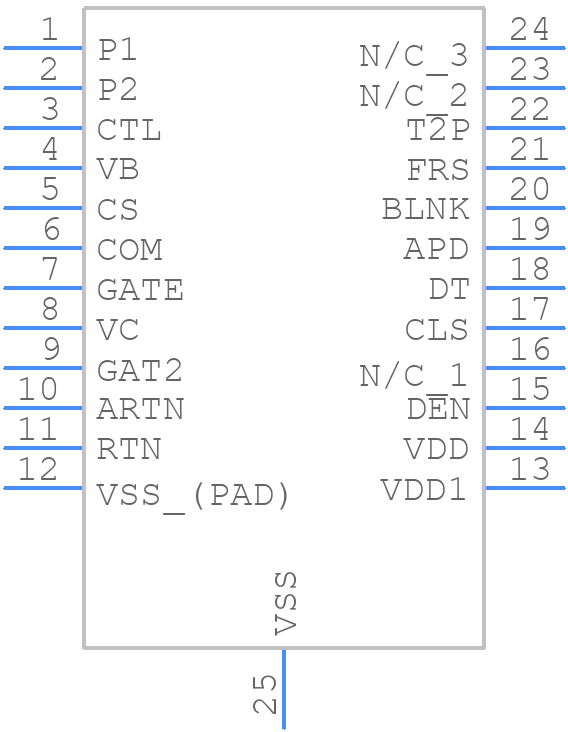

TPS23785BPWPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS23785BPWPR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP0024B
click to zoom
3D Models
TPS23785BPWPR - Texas Instruments - 3D model - Small Outline Packages - PWP0024B
click to zoom

TPS23785BPWPR Details

  • Manufacturer Part Number:

    TPS23785BPWPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    57 V

  • Input Voltage-Min:

    15.7 V

  • Input Voltage-Nom:

    10 V

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    1.1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    1.24 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    278 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TPS23785BPWPR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TPS23785 evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The input capacitor selection depends on the input voltage ripple, output current, and operating frequency. A general guideline is to choose a capacitor with a voltage rating at least 1.5 times the maximum input voltage, and a capacitance value that ensures the input voltage ripple is within the recommended range (typically 1-5% of the input voltage).
  • The maximum output current of the TPS23785BPWPR is 3.5A, but this can be limited by the thermal performance of the device and the PCB. It's essential to ensure proper thermal management and follow the recommended layout guidelines to achieve the maximum output current.
  • The TPS23785BPWPR has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The OCP threshold can be set by selecting the appropriate resistor value, and the device will limit the output current to prevent damage in case of an overcurrent event.
  • The TPS23785BPWPR is rated for operation up to 105°C, but the device's performance and reliability may be affected at high temperatures. It's essential to ensure proper thermal management and follow the recommended layout guidelines to minimize thermal resistance and ensure reliable operation.
