Texas Instruments provides a recommended PCB layout in the TPS23851DCE evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management. Following this layout can help minimize noise, reduce electromagnetic interference (EMI), and ensure reliable operation.
The sense resistor value depends on the current sensing range and accuracy required for your application. A smaller sense resistor value provides higher accuracy but may increase power loss, while a larger value reduces power loss but may decrease accuracy. Texas Instruments provides a sense resistor calculator tool to help with selection.
The maximum cable length supported by the TPS23851DCE depends on the specific application and the type of cable used. As a general guideline, Texas Instruments recommends keeping the cable length as short as possible (less than 1 meter) to minimize signal attenuation and ensure reliable operation. For longer cable lengths, additional signal conditioning or amplification may be required.
Yes, the TPS23851DCE is a general-purpose powered device (PD) controller that can be used with non-PoE applications, such as DC power supplies or battery-powered systems. However, the device's features and performance may not be fully utilized in non-PoE applications.
The TPS23851DCE has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a suitable resistor value. The device will then limit the output current to the programmed value to prevent damage from overcurrent conditions. Texas Instruments provides guidelines for selecting the correct OCP resistor value in the datasheet.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TPS23851DCE Overview

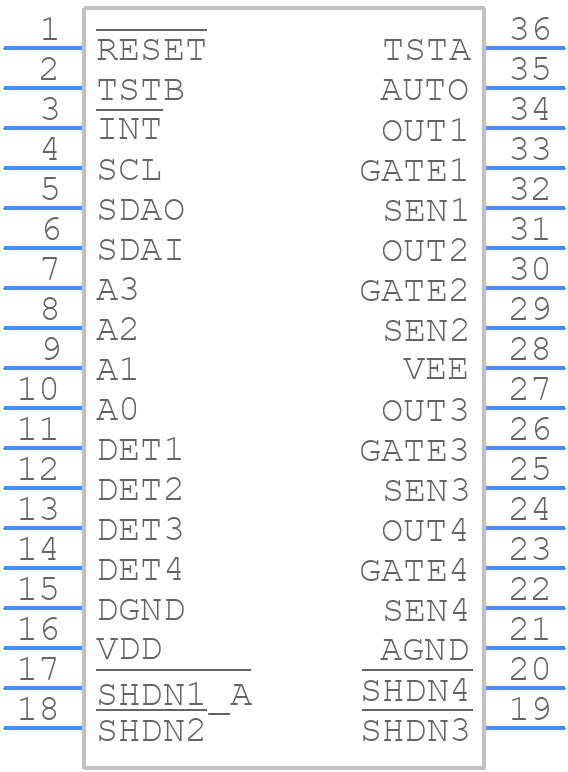

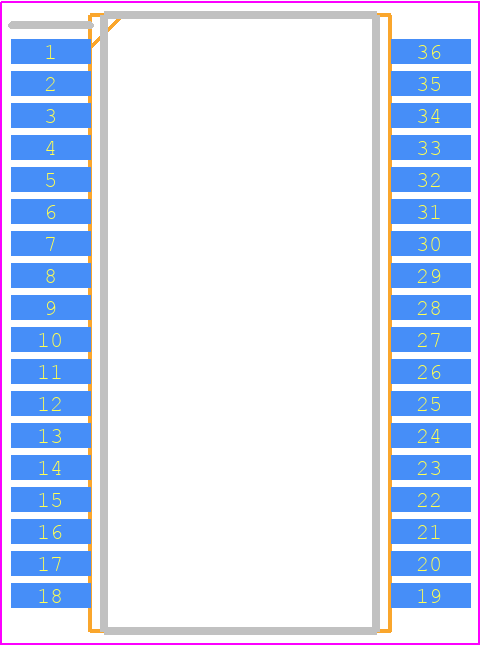

Use the download button to access the TPS23851DCE schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS23,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
