The TPS2410RMSR can handle surge currents up to 100 A for 1 ms, but it's recommended to limit the surge current to 50 A for 1 ms to ensure reliable operation.
To ensure proper power-up and configuration, follow the recommended power-up sequence: VCC, then EN, then IN. Also, make sure to connect the EN pin to a valid logic signal, and configure the device according to the datasheet recommendations.
The EN (enable) pin is used to enable or disable the device. When EN is high, the device is enabled, and when EN is low, the device is disabled. Use the EN pin to control the power state of the device, and to implement power-saving modes or shutdown functionality.
Choose a sense resistor value that provides an accurate current measurement while minimizing power loss. A good starting point is to use a sense resistor value between 1 mΩ and 10 mΩ. Consult the datasheet and application notes for more information on sense resistor selection.
Follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and using thermal vias to dissipate heat. Place the device near the power input, and ensure good airflow around the device. Consult the datasheet and application notes for more information on PCB layout and thermal design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2410RMSR Overview

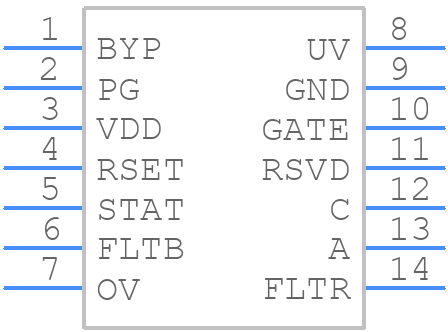

Use the download button to access the TPS2410RMSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS24,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
