TPS2411PWRG4 - Texas Instruments

Description: Hot Swap Voltage Controllers N+1 and OR-ing Pwr Rail Controller

Download TPS2411PWRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

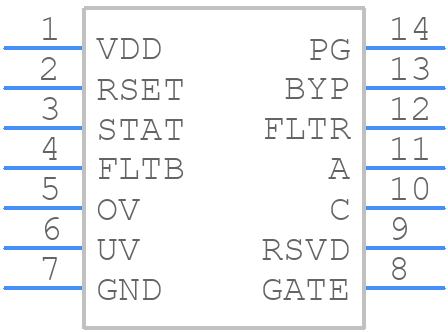

TPS2411PWRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS2411PWRG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW (R-PDSO-G14)
click to zoom
3D Models
TPS2411PWRG4 - Texas Instruments - 3D model - Small Outline Packages - PW (R-PDSO-G14)
click to zoom

TPS2411PWRG4 Details

  • Manufacturer Part Number:

    TPS2411PWRG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    14

  • Country Of Origin:

    Malaysia

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • Input Voltage-Max:

    16.5 V

  • Input Voltage-Min:

    0.8 V

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    16.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TPS2411PWRG4 Frequently Asked Questions (FAQs)

  • The TPS2411PWRG4 can handle up to 1.5A of continuous current, but it's recommended to derate the current based on the ambient temperature and PCB layout to ensure reliable operation.
  • The sense resistor value depends on the current sensing range and accuracy required. A smaller sense resistor value provides higher current sensing accuracy but increases power loss. TI provides a sense resistor calculator tool to help with the selection.
  • The EN (enable) pin is used to turn the device on or off. When EN is high, the device is enabled, and when EN is low, the device is disabled. This pin can be used to implement power sequencing or to reduce power consumption when the device is not in use.
  • The TPS2411PWRG4 has built-in OCP and OVP features. For OCP, the device will limit the current to the programmed value. For OVP, the device will shut down if the input voltage exceeds the programmed value. The OCP and OVP thresholds can be programmed using external resistors.
  • TI recommends a 2-layer or 4-layer PCB with a solid ground plane and a thermal pad connected to the GND pin. The device should be placed near the input capacitors, and the output capacitors should be placed near the load. A thermal via array can be used to improve heat dissipation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS2411PWRG4 Overview

Use the download button to access the TPS2411PWRG4 schematic symbol, PCB footprint, and 3D model.
