TPS2411RMSR - Texas Instruments

Description: Hot Swap Voltage Controllers 0.8-V to 16.5-V 1.2A IQ 293-uA Igate source N+1 and OR-ing power rail controller 14-UQFN -40 to 85

Download TPS2411RMSR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

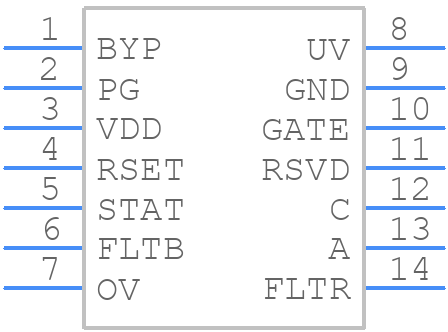

Symbol
TPS2411RMSR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS2411RMSR - Texas Instruments PCB footprint - Other - Other - TPS2411RMSR-3
click to zoom
3D Models
TPS2411RMSR - Texas Instruments - 3D model - Other - TPS2411RMSR-3
click to zoom

TPS2411RMSR Details

  • Manufacturer Part Number:

    TPS2411RMSR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-08-09

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • Input Voltage-Max:

    16.5 V

  • Input Voltage-Min:

    0.8 V

  • JESD-30 Code:

    S-XQCC-N14

  • JESD-609 Code:

    e4

  • Length:

    2.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC14,.1SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.6 mm

  • Supply Voltage-Max (Vsup):

    16.5 V

  • Supply Voltage-Min (Vsup):

    0.8 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.5 mm

TPS2411RMSR Frequently Asked Questions (FAQs)

  • The TPS2411RMSR can handle up to 1.5A of continuous current, but it's recommended to derate the current based on the ambient temperature and PCB layout to ensure reliable operation.
  • The sense resistor value depends on the current sensing range and accuracy required. A smaller sense resistor value provides higher accuracy but increases power loss, while a larger value reduces power loss but decreases accuracy. TI provides a sense resistor calculator tool to help with the selection.
  • The EN (enable) pin is used to turn the device on or off. When EN is high, the device is enabled, and when EN is low, the device is disabled. This pin can be used to implement power sequencing or to reduce power consumption when the device is not in use.
  • The fault flags indicate various fault conditions such as overcurrent, undervoltage, and overvoltage. The specific fault condition can be determined by checking the fault flag pins and referring to the datasheet. The flags can be used to implement fault handling and protection mechanisms in the system.
  • Yes, the TPS2411RMSR is suitable for hot-swap applications due to its ability to handle high inrush currents and provide overcurrent protection. However, the device must be properly configured and the system design must ensure that the device can handle the hot-swap event without damage.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS2411RMSR Overview

Use the download button to access the TPS2411RMSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS24, or try a keyword search, such as Other Signal Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
