Description:TPS2583x-Q1 USB Type-C and BC1.2 5-V 3.5-A Output, 36-V Input Synchronous Step-Down DC/DC Regulator with Cable Compensation, VQFN (32) 5.00 mm x 5.00 mm
Texas Instruments provides a recommended PCB layout in the TPS25830QWRHBTQ1 evaluation module documentation, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
The input capacitor selection depends on the input voltage, current, and frequency. A general guideline is to choose a capacitor with a voltage rating at least 1.5 times the maximum input voltage, and a capacitance value that ensures the input ripple voltage is within the recommended range. TI provides a capacitor selection guide in the datasheet.
The maximum output current of the TPS25830QWRHBTQ1 is 3A, but it depends on the input voltage, output voltage, and ambient temperature. It's essential to check the device's power dissipation and thermal performance to ensure reliable operation within the specified limits.
The TPS25830QWRHBTQ1 has a built-in overcurrent protection feature that can be enabled by connecting the OCSET pin to a resistor divider network. The resistor values determine the overcurrent threshold, and the device will limit the output current to prevent damage in case of an overload.
The TPS25830QWRHBTQ1 is rated for operation up to 125°C, but it's essential to consider the device's power dissipation, thermal resistance, and derating factors when operating in high-temperature environments. TI provides thermal performance data and derating curves in the datasheet to help with design decisions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS25830QWRHBTQ1 Overview

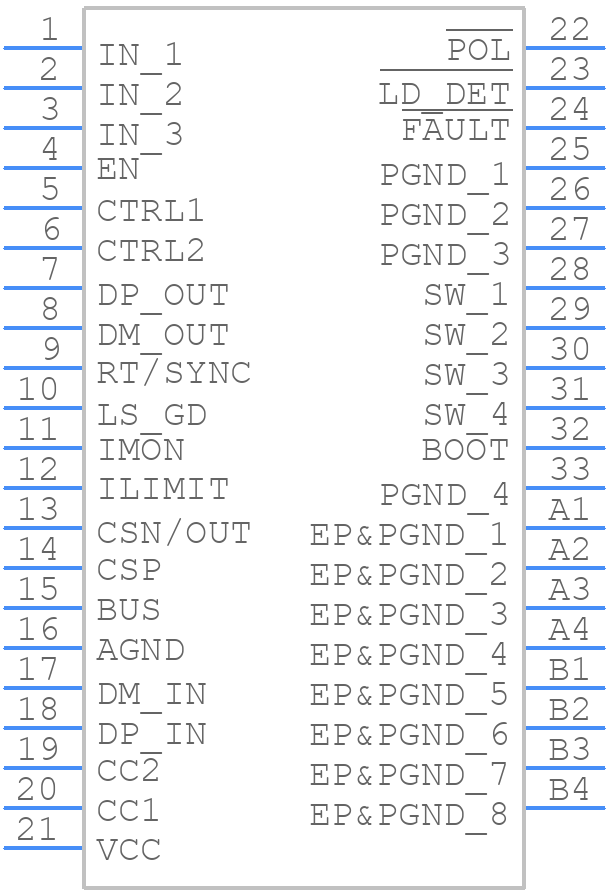

Use the download button to access the TPS25830QWRHBTQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS25,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
