Texas Instruments provides a recommended PCB layout in the TPS25832QWRHBRQ1 evaluation module (EVM) user's guide, which includes guidelines for component placement, trace routing, and thermal management to minimize noise and ensure reliable operation.
The input capacitor selection depends on the input voltage, current, and frequency. A general guideline is to choose a capacitor with a voltage rating at least 1.5 times the maximum input voltage, and a capacitance value between 1uF to 10uF. Additionally, consider the capacitor's ESR, ESL, and ripple current rating to ensure it can handle the input current and frequency.
The TPS25832QWRHBRQ1 is a 3A current-limited USB Type-C power delivery controller, but the maximum output current capability depends on the thermal design and PCB layout. With proper thermal design, the device can deliver up to 3A of output current. However, it's essential to follow the thermal design guidelines and perform thermal simulations to ensure the device operates within its thermal limits.
The TPS25832QWRHBRQ1 has a built-in OVP feature that can be enabled by connecting the OVP pin to a voltage divider network. The OVP threshold is set by the voltage divider ratio, and the device will shut down if the input voltage exceeds the set threshold. Additionally, an external OVP circuit can be implemented using a dedicated OVP IC or a comparator circuit.
While the TPS25832QWRHBRQ1 is designed for USB Type-C power delivery, it can be used for non-USB applications that require a high-current, low-voltage power supply. However, the device's configuration and programming would need to be modified to accommodate the specific application requirements. It's essential to consult with Texas Instruments' support team or a qualified engineer to ensure the device is used within its operating limits and meets the application's requirements.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS25832QWRHBRQ1 Overview

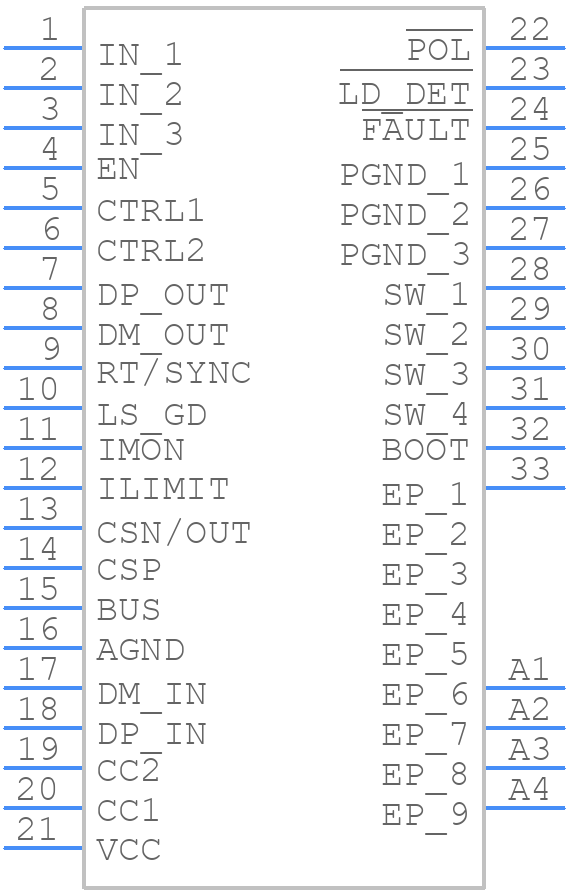

Use the download button to access the TPS25832QWRHBRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS25,
or try a keyword search, such as Switching Regulator or Controllers
