TPS27082LDDCR - Texas Instruments

Description: PFET Load Switch with Adjustable Slew Rate, Fast Transient Isolation & Hysteretic Control

Download TPS27082LDDCR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

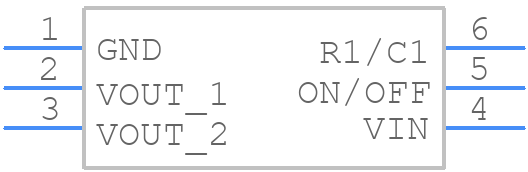

Symbol
TPS27082LDDCR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS27082LDDCR - Texas Instruments PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - TPS27082LDDCR
click to zoom
3D Models
TPS27082LDDCR - Texas Instruments - 3D model - SOT23 (6-Pin) - TPS27082LDDCR
click to zoom

TPS27082LDDCR Details

  • Manufacturer Part Number:

    TPS27082LDDCR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Built-in Protections:

    TRANSIENT

  • Driver Number of Bits:

    1

  • Interface IC Type:

    BUFFER OR INVERTER BASED PERIPHERAL DRIVER

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Current Flow Direction:

    SOURCE

  • Output Current-Max:

    3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    8 V

  • Supply Voltage-Min:

    1 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

TPS27082LDDCR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS27082LDDCR involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The choice of input and output capacitors for the TPS27082LDDCR depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be at least 10uF for the input capacitor and 22uF for the output capacitor.
  • The TPS27082LDDCR is rated for operation over a temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at temperatures above 85°C.
  • Yes, the TPS27082LDDCR is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard and is manufactured using a qualified process.
  • To ensure proper power-up and power-down of the TPS27082LDDCR, it's recommended to follow a soft-start sequence, where the input voltage is ramped up slowly to the nominal voltage. During power-down, the input voltage should be ramped down slowly to prevent any voltage spikes or oscillations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS27082LDDCR Overview

Use the download button to access the TPS27082LDDCR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS27, or try a keyword search, such as Peripheral Drivers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
