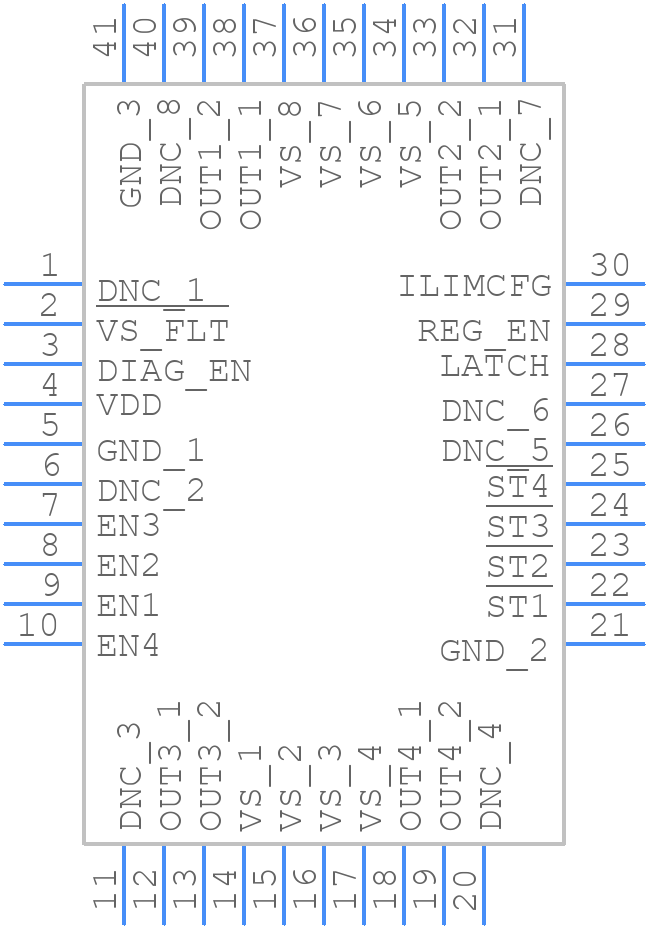

TPS274C65CPWRHAR - Texas Instruments

TPS274C65CPWRHAR Details

• Manufacturer Part Number:

  TPS274C65CPWRHAR

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Built-in Protections:

  TRANSIENT; OVER CURRENT; THERMAL; UNDER VOLTAGE;OVERLOAD

• Driver Number of Bits:

  4

• Input Characteristics:

  STANDARD

• Interface IC Type:

  BUFFER OR INVERTER BASED PERIPHERAL DRIVER

• JESD-30 Code:

  S-PQCC-N40

• JESD-609 Code:

  e4

• Length:

  6 mm

• Moisture Sensitivity Level:

  2

• Number of Channels:

  4

• Number of Functions:

  1

• Number of Terminals:

  40

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Current Flow Direction:

  SINK

• Output Current-Max:

  1.8 A

• Output Polarity:

  TRUE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC40,.24SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  1 mm

• Supply Voltage-Max:

  36 V

• Supply Voltage-Min:

  10 V

• Supply Voltage-Nom:

  3.3 V

• Supply Voltage1-Max:

  36 V

• Supply Voltage1-Min:

  6 V

• Supply Voltage1-Nom:

  10 V

• Surface Mount:

  YES

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Turn-off Time:

  57 µs

• Turn-on Time:

  42 µs

• Width:

  6 mm
