Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and ringing.
The selection of input and output capacitors depends on the specific application requirements, such as output voltage, output current, and ripple voltage. A general rule of thumb is to use low-ESR capacitors with a capacitance value of 10uF to 22uF for the input and output. The datasheet provides more detailed guidance on capacitor selection.
The TPS2811QPWRQ1 has an operating ambient temperature range of -40°C to 125°C, but the maximum junction temperature is 150°C. It's essential to ensure that the device is properly cooled to prevent overheating and ensure reliable operation.
Yes, the TPS2811QPWRQ1 is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications and is suitable for use in harsh environments.
To troubleshoot issues with the TPS2811QPWRQ1, start by checking the input voltage, output voltage, and output current. Verify that the device is properly configured and that the input and output capacitors are correctly selected. Use an oscilloscope to check for ringing or oscillations on the output. If the issue persists, consult the datasheet and application notes for guidance or contact Texas Instruments support.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TPS2811QPWRQ1 Overview

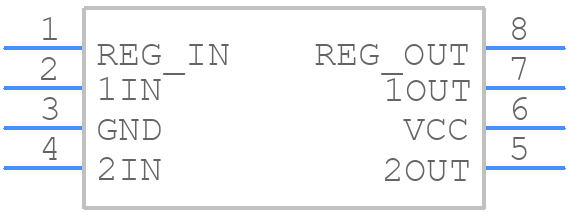

Use the download button to access the TPS2811QPWRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS28,
or try a keyword search, such as MOSFET Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
