TPS2814P - Texas Instruments

Description: TPS2814P, Dual MOSFET Power Driver 2A, Inverting, 4 → 14 V, 8-Pin PDIP

Download TPS2814P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

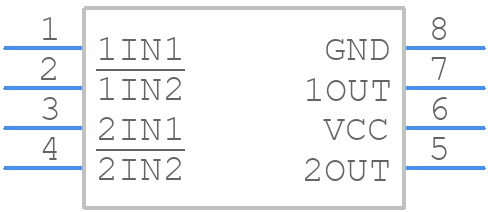

TPS2814P - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS2814P - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8-DIP (0.300", 7.62mm)
click to zoom
3D Models
TPS2814P - Texas Instruments - 3D model - Dual-In-Line Packages - 8-DIP (0.300", 7.62mm)
click to zoom

TPS2814P Details

  • Manufacturer Part Number:

    TPS2814P

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    8

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO REQUIRES 8V TO 40 V REGULATOR INPUT SUPPLY

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    NAND GATE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e4

  • Length:

    9.81 mm

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    TOTEM-POLE

  • Output Current-Max:

    2 A

  • Output Peak Current Limit-Nom:

    2 A

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max:

    0.005 mA

  • Supply Voltage-Max:

    14 V

  • Supply Voltage-Min:

    4 V

  • Supply Voltage-Nom:

    10 V

  • Surface Mount:

    NO

  • Technology:

    BIMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.05 µs

  • Turn-on Time:

    0.05 µs

  • Width:

    7.62 mm

TPS2814P Frequently Asked Questions (FAQs)

  • The TPS2814P can operate from -40°C to 125°C, but the junction temperature should not exceed 150°C.
  • The TPS2814P has an internal power-on reset (POR) circuit that ensures the device is properly powered up and initialized. However, it's recommended to add an external capacitor between the VCC and GND pins to filter out noise and ensure a clean power-up sequence.
  • To minimize EMI and noise, it's recommended to follow a star-grounding layout, keep the input and output traces short and away from each other, and use a solid ground plane. Additionally, adding a ferrite bead or a common-mode choke can help filter out high-frequency noise.
  • Yes, the TPS2814P is qualified for automotive and high-reliability applications. It meets the requirements of AEC-Q100 and is built with a robust design and manufacturing process to ensure high reliability and long-term stability.
  • To troubleshoot issues with the TPS2814P, start by checking the input voltage, output voltage, and current consumption. Verify that the device is properly powered up and initialized, and check for any signs of overheating or electrical overstress. Use an oscilloscope to monitor the output voltage and current, and consult the datasheet and application notes for guidance on troubleshooting and debugging.
