A good PCB layout for the TPS28225TDRBRQ1 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a shielded inductor and to keep the device away from high-current carrying traces.
To ensure the TPS28225TDRBRQ1 operates within its recommended operating conditions, make sure to provide a stable input voltage within the recommended range (2.7V to 5.5V), keep the junction temperature below 125°C, and avoid exceeding the maximum output current (2.5A).
Not using the recommended input and output capacitors with the TPS28225TDRBRQ1 can lead to reduced stability, increased noise, and decreased efficiency. It may also cause the device to oscillate or malfunction.
While the TPS28225TDRBRQ1 can operate up to 125°C, it's recommended to derate the output current and input voltage as the temperature increases to ensure reliable operation. Consult the datasheet for specific derating guidelines.
To troubleshoot issues with the TPS28225TDRBRQ1, start by verifying the input voltage, output current, and PCB layout. Check for signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to monitor the output voltage and current, and consult the datasheet for troubleshooting guidelines.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS28225TDRBRQ1 Overview

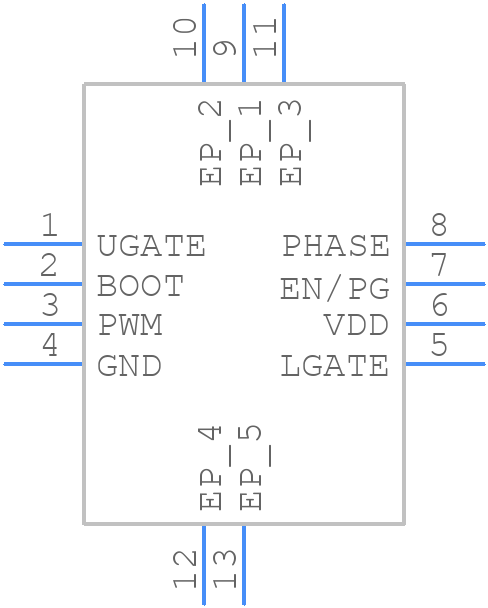

Use the download button to access the TPS28225TDRBRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS28,
or try a keyword search, such as MOSFET Drivers
