Texas Instruments provides a recommended PCB layout in the TPS28226D datasheet, which includes guidelines for component placement, trace routing, and thermal management. Additionally, the TI website offers a PCB layout checklist and a layout guide for high-frequency switching regulators.
The selection of the inductor depends on the specific application requirements, such as the output voltage, current, and switching frequency. TI provides an inductor selection guide in the datasheet, which includes a list of recommended inductors and their corresponding characteristics. Additionally, online inductor selection tools, such as the TI Inductor Selection Tool, can help engineers choose the right inductor for their design.
The TPS28226D has a maximum ambient operating temperature of 85°C, as specified in the datasheet. However, the device can operate at higher temperatures with derating, and the maximum junction temperature is 150°C. Engineers should ensure that the device is properly cooled and that the thermal design is adequate for the specific application.
Yes, the TPS28226D is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive-grade devices and is also suitable for industrial and medical applications that require high reliability. Engineers should consult the datasheet and the TI website for more information on the device's qualifications and certifications.
TI provides a troubleshooting guide in the datasheet, which includes a list of common issues and their possible causes and solutions. Additionally, the TI website offers application notes, technical articles, and online forums where engineers can find more information and resources to help troubleshoot issues with the TPS28226D.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS28226D Overview

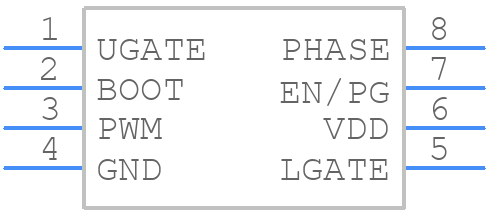

Use the download button to access the TPS28226D schematic symbol, PCB footprint, and 3D model.
