Description:Power Switch ICs - Power Distribution 40-V, 16-m , 2-ch automotive smart high-side switch with adjustable current limit 16-HTSSOP -40 to 125
A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the heat sink. A 4-layer PCB with a solid ground plane and a thermal relief pattern can also help to dissipate heat efficiently.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal design and layout guidelines, and to ensure that the device is operated within its recommended operating temperature range. Additionally, consider using thermal interface materials and heat sinks to improve heat dissipation.
Exceeding the maximum junction temperature can lead to reduced device reliability, increased thermal resistance, and potentially even device failure. It's essential to ensure that the device operates within its recommended temperature range to prevent thermal-related issues.
To handle ESD protection for the TPS2HB16FQPWPRQ1, follow proper ESD handling procedures during device handling and assembly, and consider using ESD protection devices or circuits in the system design. Additionally, ensure that the device is properly grounded and that there are no unintended electrical paths that could compromise ESD protection.
When assembling and reworking the PCB, ensure that the device is handled and stored in an ESD-safe environment, and that the PCB is properly cleaned and dried before assembly. Follow proper rework procedures to avoid damaging the device or the PCB.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS2HB16FQPWPRQ1 Overview

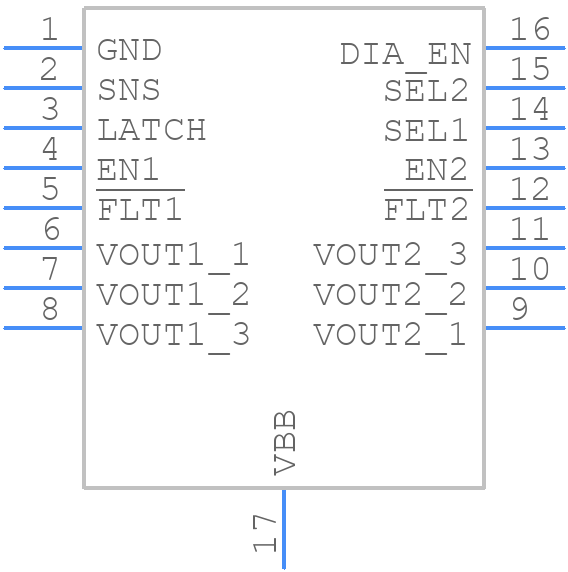

Use the download button to access the TPS2HB16FQPWPRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS2H,
or try a keyword search, such as Peripheral Drivers
