Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as keeping the input and output traces short and away from noise sources, and using a solid ground plane to reduce EMI.
The output capacitor selection depends on the output voltage, output current, and desired ripple voltage. A general rule of thumb is to choose a capacitor with a capacitance value of at least 10uF and a voltage rating of at least 1.5 times the output voltage. Additionally, consider the capacitor's ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance) to ensure it can handle the output current and frequency.
The maximum ambient temperature for the TPS3436 is 85°C, but it's recommended to derate the device's performance at higher temperatures to ensure reliability and prevent thermal shutdown.
Yes, the TPS3436 is qualified for automotive and high-reliability applications, but it's essential to follow the recommended design and layout guidelines, and to perform thorough testing and validation to ensure the device meets the specific application requirements.
To troubleshoot issues with the TPS3436, start by verifying the input voltage, output voltage, and output current are within the recommended specifications. Check the PCB layout for any signs of noise or EMI, and ensure the output capacitor is properly selected and placed. Use an oscilloscope to measure the output voltage and current waveforms, and consult the datasheet and application notes for guidance on troubleshooting common issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS3436CCCBGDDFRQ1 Overview

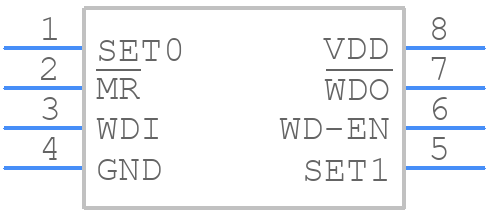

Use the download button to access the TPS3436CCCBGDDFRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS34,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
