Part Image

TPS40000DGQ - Texas Instruments

Description: Low Input (2.25V-5.5V) 300 kHz Frequency, Synchronous Buck Controller, Source Only

Download TPS40000DGQ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

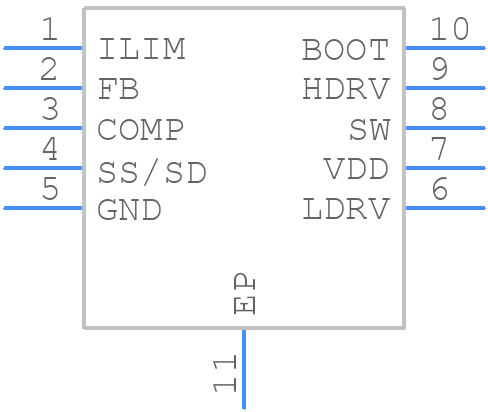

TPS40000DGQ - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS40000DGQ - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGQ (S-PDSO-G10)
click to zoom
3D Models
TPS40000DGQ - Texas Instruments - 3D model - Small Outline Packages - DGQ (S-PDSO-G10)
click to zoom

TPS40000DGQ Details

  • Manufacturer Part Number:

    TPS40000DGQ

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.25 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    15 A

  • Output Voltage-Max:

    4 V

  • Output Voltage-Min:

    0.7 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    300 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS40000DGQ Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TPS40000DGQ datasheet (Section 10.2) and in the TPS40000DGQ Evaluation Module User's Guide (SLUU444). It's essential to follow these guidelines to minimize noise, ensure proper thermal management, and optimize performance.
  • The input capacitor selection depends on the input voltage, current, and frequency. TI recommends using low-ESR capacitors with a minimum capacitance of 10uF and a voltage rating of at least 1.5 times the maximum input voltage. Refer to the TPS40000DGQ datasheet (Section 7.3) for more information.
  • The TPS40000DGQ can deliver up to 4A of output current per phase, but the maximum current capability depends on the thermal design and the application's requirements. It's essential to consider the thermal constraints and ensure proper heat sinking to achieve the desired output current.
  • The TPS40000DGQ output voltage can be configured using the VSENSE pin and an external resistor divider network. The datasheet (Section 7.4) provides a formula to calculate the required resistor values for a specific output voltage.
  • The PG (Power Good) pin is an open-drain output that indicates when the output voltage is within the specified regulation range. It can be used to enable or disable downstream circuits or to generate a reset signal. The PG pin can be connected to a pull-up resistor and a logic input or used to drive an external circuit.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS40000DGQ Overview

Use the download button to access the TPS40000DGQ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS40, or try a keyword search, such as Switching Regulator or Controllers
