SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Surface Mount:
YES
Switcher Configuration:
PUSH-PULL
Switching Frequency-Max:
300 kHz
Technology:
BICMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
TPS40007DGQR Frequently Asked Questions (FAQs)
A good PCB layout for the TPS40007DGQR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate power plane for the input and output voltages to reduce noise coupling.
To ensure stability, it's essential to follow the recommended compensation network and component values provided in the datasheet. Additionally, the output capacitor should be selected based on the output voltage and current requirements, and the input capacitor should be chosen to ensure a stable input voltage.
The TPS40007DGQR is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's essential to ensure the device's junction temperature remains within the specified range to prevent overheating and ensure reliable operation.
Yes, the TPS40007DGQR is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is manufactured using a high-reliability process. However, it's essential to follow the recommended design and testing procedures to ensure the device meets the specific application requirements.
To troubleshoot issues with the TPS40007DGQR, start by verifying the input voltage, output voltage, and output current. Check the PCB layout and component values to ensure they match the recommended values. Use an oscilloscope to measure the output voltage and current waveforms, and check for any signs of oscillation or instability. If the issue persists, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS40007DGQR Overview

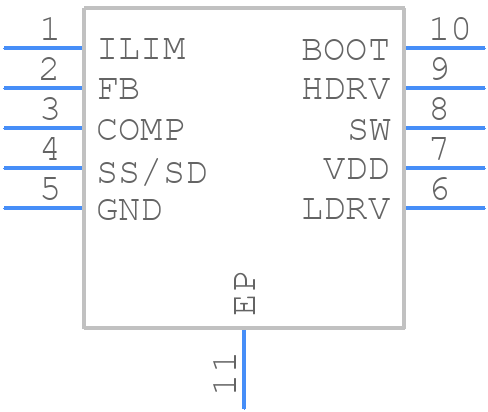

Use the download button to access the TPS40007DGQR schematic symbol, PCB footprint, and 3D model.
