TPS40009DGQRG4 - Texas Instruments

Description: Switching Controllers Low Input Sync Buck src/sink w/prebias

Download TPS40009DGQRG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

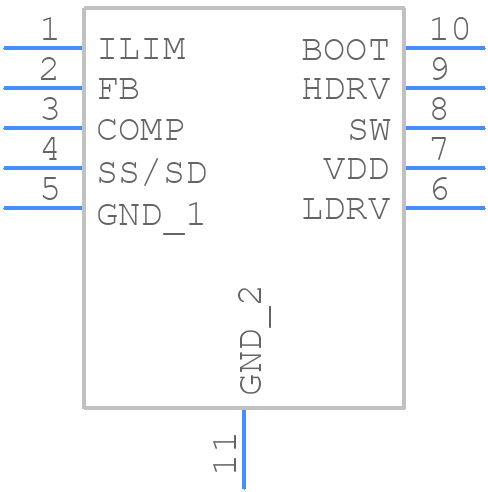

Symbol
TPS40009DGQRG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS40009DGQRG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGQ0010D
click to zoom
3D Models
TPS40009DGQRG4 - Texas Instruments - 3D model - Small Outline Packages - DGQ0010D
click to zoom

TPS40009DGQRG4 Details

  • Manufacturer Part Number:

    TPS40009DGQRG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.25 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    15 A

  • Output Voltage-Max:

    4 V

  • Output Voltage-Min:

    0.7 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    600 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS40009DGQRG4 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TPS40009DGQRG4 datasheet (page 24) and in the application note SLUA623. It's essential to follow these guidelines to ensure optimal thermal performance and minimize thermal resistance.
  • The selection of input and output capacitors depends on the specific application requirements, such as ripple current, voltage rating, and ESR. TI provides guidance on capacitor selection in the datasheet (page 14-15) and in the application note SLUA623. Additionally, the TI Power Stage Designer tool can help with capacitor selection.
  • The maximum operating junction temperature (TJ) for the TPS40009DGQRG4 is 150°C. However, it's recommended to keep the junction temperature below 125°C for optimal reliability and performance.
  • The TPS40009DGQRG4 has built-in overcurrent protection (OCP) and short-circuit protection (SCP) features. To implement these features, follow the guidelines in the datasheet (page 17-18) and use the OCP and SCP pins to connect to an external resistor and capacitor network.
  • The recommended voltage rating for the input capacitor is at least 1.5 times the maximum input voltage to ensure reliable operation and prevent capacitor failure.
