TPS40021PWPR - Texas Instruments

Description: Switching Controllers Low Input Sync Buck Cntrlr source/sink

Download TPS40021PWPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

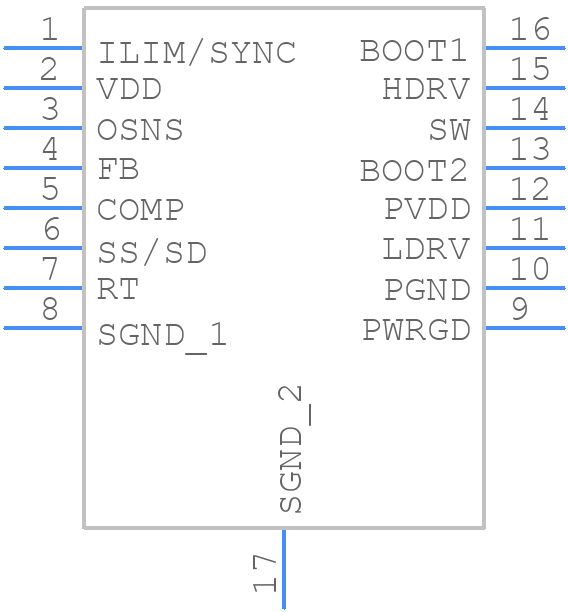

Symbol
TPS40021PWPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS40021PWPR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP0016C
click to zoom
3D Models
TPS40021PWPR - Texas Instruments - 3D model - Small Outline Packages - PWP0016C
click to zoom

TPS40021PWPR Details

  • Manufacturer Part Number:

    TPS40021PWPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    TSSOP

  • Pin Count:

    16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.25 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    25 A

  • Output Voltage-Max:

    4 V

  • Output Voltage-Min:

    0.7 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    1000 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TPS40021PWPR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS40021PWPR should include a solid ground plane, wide power traces, and a thermal relief pattern under the device to facilitate heat dissipation. TI provides a recommended PCB layout in the datasheet and application notes.
  • Choose input capacitors with low ESR and high ripple current rating. Output capacitors should have low ESR and be rated for the output voltage. TI recommends using ceramic or polymer capacitors with X5R or X7R dielectrics. See the datasheet for specific recommendations.
  • The maximum ambient temperature for the TPS40021PWPR is 85°C. As the ambient temperature increases, the device's performance may degrade, and the output voltage may drop. Ensure proper thermal design and heat sinking to maintain optimal performance.
  • The TPS40021PWPR has a built-in overcurrent protection feature. To implement it, connect a sense resistor (Rs) between the output and GND, and set the overcurrent threshold (Ilim) using an external resistor (Rlim) connected between the ILIM pin and GND. See the datasheet for calculation formulas and examples.
  • Yes, the TPS40021PWPR is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive applications and is suitable for use in harsh environments. However, ensure that your specific application meets the device's operating conditions and requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS40021PWPR Overview

Use the download button to access the TPS40021PWPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS40, or try a keyword search, such as Switching Regulator or Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
