A good PCB layout for the TPS40041DRBT should include a solid ground plane, separate analog and digital grounds, and a decoupling capacitor (e.g., 10uF) between VIN and GND. Additionally, keep the input and output capacitors close to the IC and use short, wide traces for the power paths.
Choose input capacitors with low ESR (Equivalent Series Resistance) and high ripple current rating. For output capacitors, select ones with low ESR, high capacitance, and a voltage rating that exceeds the output voltage. A good starting point is a 10uF ceramic capacitor for the input and a 22uF ceramic capacitor for the output.
The maximum ambient temperature for the TPS40041DRBT is 85°C. However, the device can operate up to 125°C junction temperature. Ensure proper thermal design and heat sinking to maintain a safe operating temperature.
Yes, the TPS40041DRBT is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard for automotive reliability and is suitable for use in harsh environments.
To troubleshoot issues with the TPS40041DRBT, start by verifying the input voltage, output voltage, and current. Check for proper PCB layout, decoupling, and thermal design. Use an oscilloscope to monitor the output voltage and current. Consult the datasheet and application notes for guidance on troubleshooting common issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS40041DRBT Overview

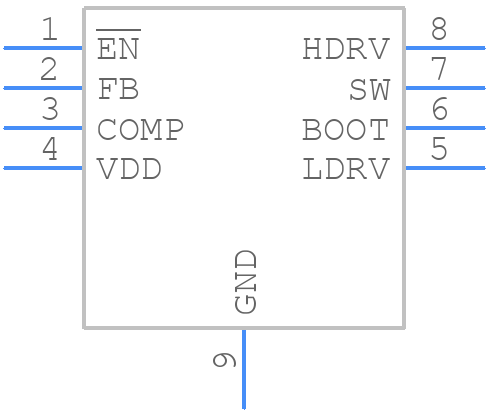

Use the download button to access the TPS40041DRBT schematic symbol, PCB footprint, and 3D model.
