SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Switcher Configuration:
PUSH-PULL
Switching Frequency-Max:
1000 kHz
Technology:
BICMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPS40050PWP Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TPS40050PWP evaluation module documentation, which includes guidelines for component placement, thermal management, and routing. Following this layout can help ensure optimal performance and minimize noise and EMI issues.
The selection of input and output capacitors depends on the specific requirements of your application, including the input voltage range, output voltage, and desired ripple and noise performance. TI provides guidelines for capacitor selection in the datasheet and application notes, and online tools such as the TI Capacitor Selection Tool can also be helpful.
The TPS40050PWP has a maximum ambient temperature rating of 85°C, but this can be derated based on the specific application and thermal management. It's essential to consider the thermal performance of the device in your specific design and ensure that it is within the recommended operating range.
The TPS40050PWP has built-in overcurrent protection and short-circuit protection features, but these may need to be configured and optimized for your specific application. TI provides guidelines and examples for implementing these features in the datasheet and application notes.
The recommended startup sequence for the TPS40050PWP involves applying the input voltage, followed by the enable signal, and then the output voltage. This sequence helps ensure that the device starts up correctly and minimizes the risk of damage or malfunction.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS40050PWP Overview

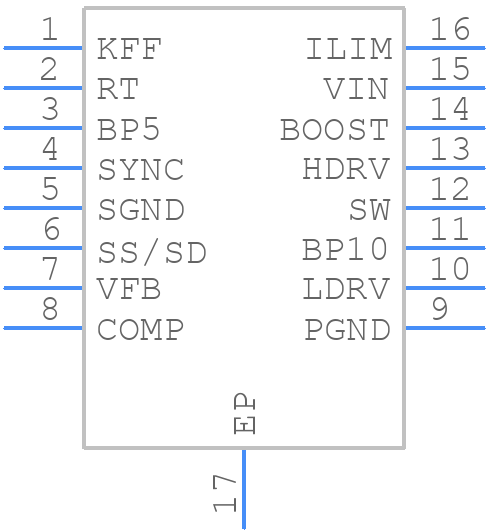

Use the download button to access the TPS40050PWP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS40,
or try a keyword search, such as Switching Regulator or Controllers
