SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Switcher Configuration:
PUSH-PULL
Switching Frequency-Max:
1000 kHz
Technology:
BICMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPS40052PWP Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
Choose input capacitors with low ESR (Equivalent Series Resistance) and high ripple current rating. For output capacitors, select ones with low ESR, high capacitance, and a voltage rating that meets or exceeds the output voltage. The datasheet provides guidance on capacitor selection, but it's crucial to consider the specific application requirements.
While the datasheet specifies an operating temperature range of -40°C to 125°C, it's essential to consider the maximum ambient temperature for reliable operation. Typically, it's recommended to keep the ambient temperature below 85°C to ensure reliable operation and minimize thermal-related issues.
To ensure proper power-up and power-down, follow the recommended power sequencing in the datasheet. This typically involves powering up the input voltage (VIN) before the enable pin (EN) and powering down the enable pin before the input voltage. Additionally, ensure that the input voltage is stable and within the recommended range before enabling the device.
Thermal management is critical for the TPS40052PWP. Ensure good airflow around the device, use a heat sink if necessary, and follow the recommended thermal pad layout. It's also essential to monitor the junction temperature (TJ) and ensure it remains within the recommended range to prevent thermal shutdown or damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS40052PWP Overview

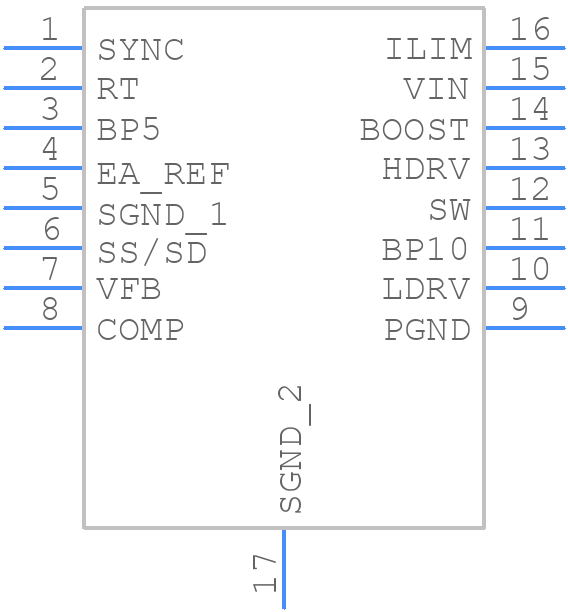

Use the download button to access the TPS40052PWP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS40,
or try a keyword search, such as Switching Regulator or Controllers
