TPS40055PWP - Texas Instruments

Description: Wide Input (8V-40V) up to 1MHz Frequency Synchronous Buck Controller, source/sink

Download TPS40055PWP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

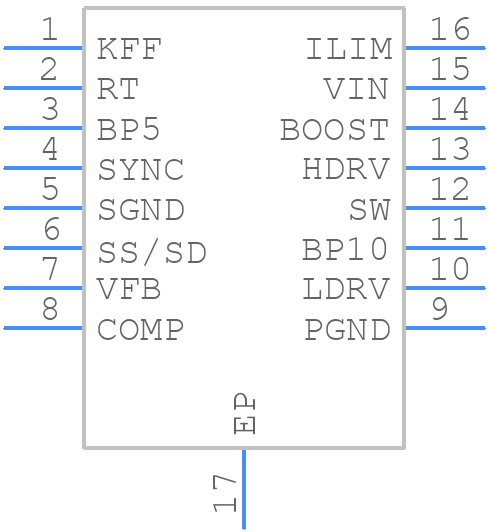

TPS40055PWP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS40055PWP - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP0016C
click to zoom
3D Models
TPS40055PWP - Texas Instruments - 3D model - Small Outline Packages - PWP0016C
click to zoom

TPS40055PWP Details

  • Manufacturer Part Number:

    TPS40055PWP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    16

  • Country Of Origin:

    Mainland China, Philippines, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    8 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    20 A

  • Output Voltage-Max:

    35 V

  • Output Voltage-Min:

    0.7 V

  • Output Voltage-Nom:

    32.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    1000 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TPS40055PWP Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the device can help to dissipate heat efficiently. It's also recommended to keep the thermal path short and use a thermal pad on the bottom of the device.
  • Monitor the input voltage, output voltage, and output current to ensure they are within the recommended operating ranges specified in the datasheet. Also, ensure the device is not exposed to excessive temperatures, humidity, or vibration.
  • Exceeding the maximum junction temperature can lead to reduced device lifespan, decreased performance, and potentially even device failure. It's essential to implement proper thermal management and monitoring to prevent overheating.
  • While the TPS40055PWP is a high-quality device, it's essential to consult with Texas Instruments and conduct thorough testing and validation to ensure the device meets the specific requirements of your high-reliability or safety-critical application.
