TPS40057PWP - Texas Instruments

Description: Wide Input (8V-40V) up to 1MHz Frequency Synchronous Buck Controller, source/sink with prebias

Download TPS40057PWP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

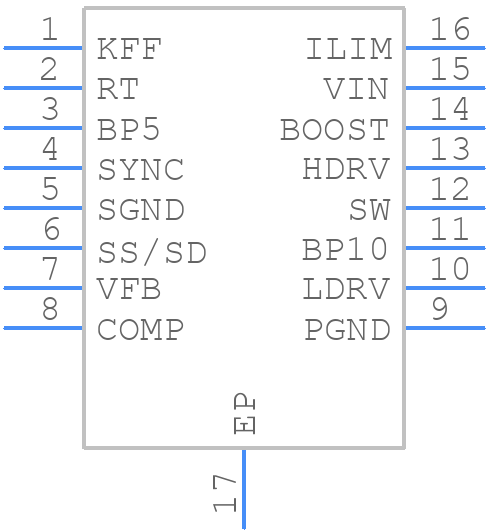

TPS40057PWP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS40057PWP - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP0016C_1
click to zoom
3D Models
TPS40057PWP - Texas Instruments - 3D model - Small Outline Packages - PWP0016C_1
click to zoom

TPS40057PWP Details

  • Manufacturer Part Number:

    TPS40057PWP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    16

  • Country Of Origin:

    Mainland China, Malaysia, Mexico, Philippines, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    8 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    20 A

  • Output Voltage-Max:

    35 V

  • Output Voltage-Min:

    0.7 V

  • Output Voltage-Nom:

    32.2 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    1000 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TPS40057PWP Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS40057PWP involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The choice of input and output capacitors for the TPS40057PWP depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended for the input capacitor, while a 10uF to 22uF ceramic capacitor is suitable for the output capacitor.
  • The TPS40057PWP is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the power dissipation of the device. In general, the device can operate up to 85°C ambient temperature with a suitable heat sink.
  • The power dissipation of the TPS40057PWP can be calculated using the formula: Pd = (VIN x IIN) + (VOUT x IOUT) + (IOUT x RDS(on)). The power dissipation should be kept below the maximum rating of 2.5W to ensure reliable operation.
  • The recommended input voltage range for the TPS40057PWP is 2.7V to 5.5V, but the device can operate from 2.5V to 6V with reduced performance. It's recommended to use a voltage regulator or a voltage supervisor to ensure a stable input voltage.
