SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Switcher Configuration:
PUSH-PULL
Switching Frequency-Max:
1000 kHz
Technology:
BICMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPS40061PWPG4 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
Choose input capacitors with low ESR (Equivalent Series Resistance) and high ripple current ratings. For output capacitors, select ones with low ESR, high capacitance, and a voltage rating that meets or exceeds the output voltage. Refer to the datasheet for specific recommendations and calculations.
The TPS40061PWPG4 is rated for operation up to 85°C ambient temperature. However, it's essential to consider the thermal design and ensure proper heat dissipation to maintain a safe junction temperature (TJ) below 125°C.
The TPS40061PWPG4 has a built-in overcurrent protection feature. To implement it, connect a sense resistor (RSENSE) between the VIN pin and the input capacitor. The device will limit the output current to the programmed value (set by the ISET pin) and shut down if the current exceeds the limit.
The recommended input voltage range for the TPS40061PWPG4 is 4.5V to 18V. Operating outside this range may affect performance, efficiency, or reliability. Ensure the input voltage is within the specified range for optimal results.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS40061PWPG4 Overview

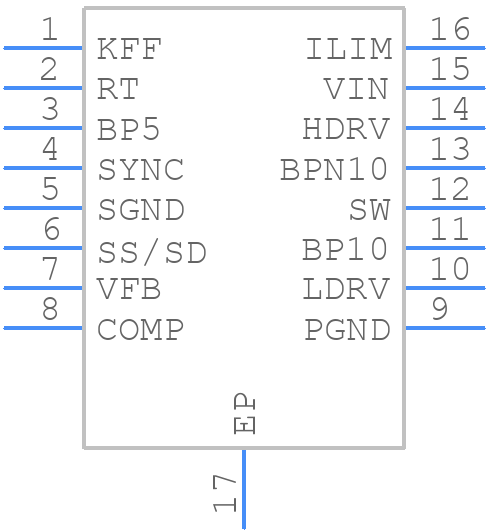

Use the download button to access the TPS40061PWPG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS40,
or try a keyword search, such as Switching Regulator or Controllers
