Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
Choose input capacitors with low ESR (Equivalent Series Resistance) and high ripple current ratings. For output capacitors, select ones with low ESR, high capacitance, and a voltage rating that meets or exceeds the output voltage. Refer to the datasheet for specific recommendations and calculations.
The TPS40090RHDR is rated for operation up to 85°C ambient temperature. However, it's essential to consider the thermal design and ensure proper heat dissipation to maintain a safe junction temperature (TJ) below 125°C.
To ensure stability, follow the datasheet's guidelines for component selection, PCB layout, and compensation. Additionally, consider using a Type III compensation network, and verify the stability by analyzing the loop gain and phase margin using tools like TI's WEBENCH or SPICE simulations.
The recommended input voltage range for the TPS40090RHDR is 4.5V to 18V. Operating outside this range may affect performance, efficiency, or reliability. Ensure the input voltage is within the specified range to guarantee optimal operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS40090RHDR Overview

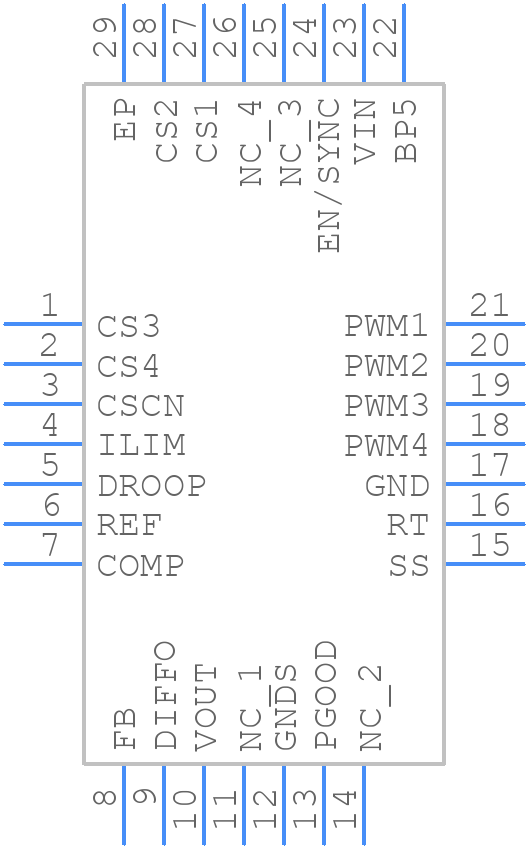

Use the download button to access the TPS40090RHDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS40,
or try a keyword search, such as Switching Regulator or Controllers
