Texas Instruments provides a recommended PCB layout in the TPS40091PW evaluation module documentation, which includes guidelines for component placement, thermal management, and routing. Following this layout can help minimize noise, reduce electromagnetic interference (EMI), and ensure reliable operation.
The selection of input and output capacitors depends on the specific application requirements, such as input voltage, output voltage, and output current. Texas Instruments provides guidelines for capacitor selection in the datasheet, including recommended values for input and output capacitance, as well as ESR and ESL requirements. Additionally, the TPS40091PW evaluation module documentation provides examples of suitable capacitor values and types.
The TPS40091PW is rated for operation from -40°C to 125°C ambient temperature range. However, the device's performance and reliability may be affected at extreme temperatures. It is essential to consider the thermal management and heat dissipation in the system design to ensure reliable operation within the specified temperature range.
The TPS40091PW has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The datasheet provides guidelines for selecting the OCP pin resistor and capacitor values based on the desired overcurrent threshold and response time. Additionally, the TPS40091PW evaluation module documentation provides examples of overcurrent protection circuits.
The recommended startup sequence for the TPS40091PW is to first apply the input voltage, followed by the enable signal (EN pin). This ensures that the device is properly biased and configured before the output voltage is enabled. The datasheet provides more detailed information on the startup sequence and timing requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS40091PW Overview

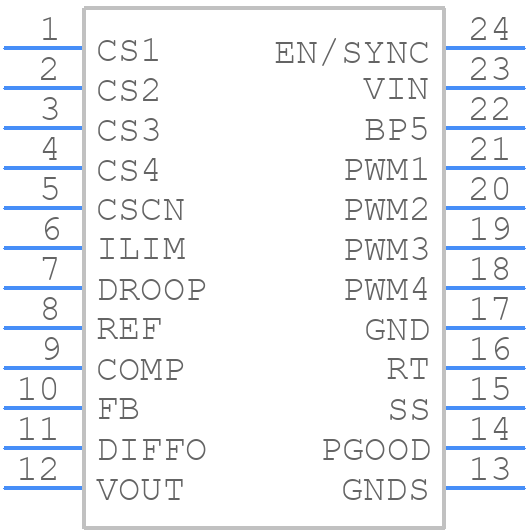

Use the download button to access the TPS40091PW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS40,
or try a keyword search, such as Switching Regulator or Controllers
