Part Image

TPS40130DBTG4 - Texas Instruments

Description: Texas Instruments TPS40130DBTG4, DC-DC Controller 30-Pin, TSSOP

Download ECAD Model

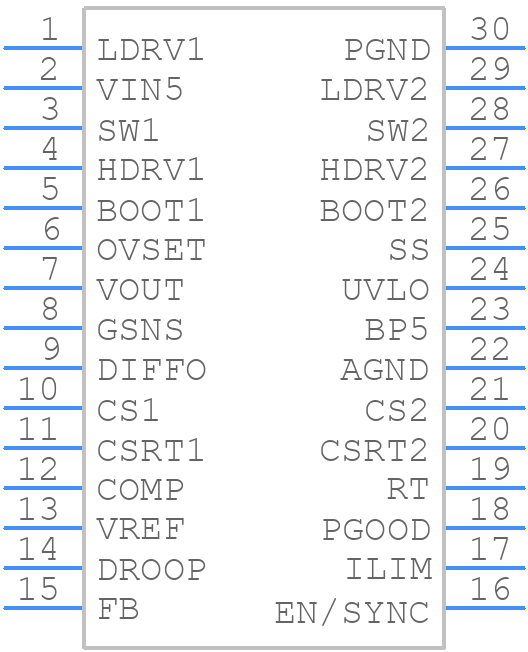

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

TPS40130DBTG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DBT0030A
click to zoom

3D Models

TPS40130DBTG4 - Texas Instruments  - 3D model - Small Outline Packages - DBT0030A
click to zoom

TPS40130DBTG4 Details

  • Manufacturer Part Number:

    TPS40130DBTG4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP, TSSOP30,.25,20

  • Pin Count:

    30

  • Reach Compliance Code:

    compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • Risk Rank:

    8.82

  • Samacsys Modified On:

    2023-03-07 16:10:32

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G30

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    30

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP30,.25,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Subcategory:

    Switching Regulator or Controllers

  • Surface Mount:

    YES

  • Switcher Configuration:

    PHASE-SHIFT

  • Switching Frequency-Max:

    1200 kHz

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

Trust Checks

Community Provided
System Verified
Community Approved
Sponsored

TPS40130DBTG4 Overview

Use the download button to access the TPS40130DBTG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS40, or try a keyword search, such as Switching Regulator or Controllers

Parts related to TPS40130DBTG4

Showing 0 results

TPS40130DBTG4 Alternates

Showing results

Image Part Number Model
Part Image TPS40130DBT Texas Instruments

2- Channel Multiphase Buck DC/DC Controller with Integrated Drivers 30-TSSOP -40 to 85

Part Image TPS40130DBTR Texas Instruments

2- Channel Multiphase Buck DC/DC Controller with Integrated Drivers 30-TSSOP -40 to 85

Part Image TPS40130DBTRG4 Texas Instruments

2- Channel Multiphase Buck DC/DC Controller with Integrated Drivers 30-TSSOP -40 to 85
