Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency PCB design guidelines, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
The selection of input and output capacitors depends on the specific application requirements, such as the input voltage range, output voltage, and ripple current. A good starting point is to use X5R or X7R ceramic capacitors with a voltage rating of at least 1.5 times the maximum input voltage. The output capacitor should be selected based on the output voltage and ripple current requirements.
The TPS40130DBTR has an operating junction temperature range of -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the thermal design of the system. A good rule of thumb is to derate the device by 1°C/W above 25°C ambient temperature.
To ensure stability, it's essential to follow the recommended PCB layout, use the correct input and output capacitors, and ensure that the output voltage is within the specified range. Additionally, the device should be operated within the recommended input voltage range, and the output should not be overloaded.
The TPS40130DBTR has a maximum output current capability of 3A, but this can be limited by the thermal design of the system and the input voltage range. It's essential to ensure that the device is operated within the recommended operating conditions to avoid overheating and ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS40130DBTR Overview

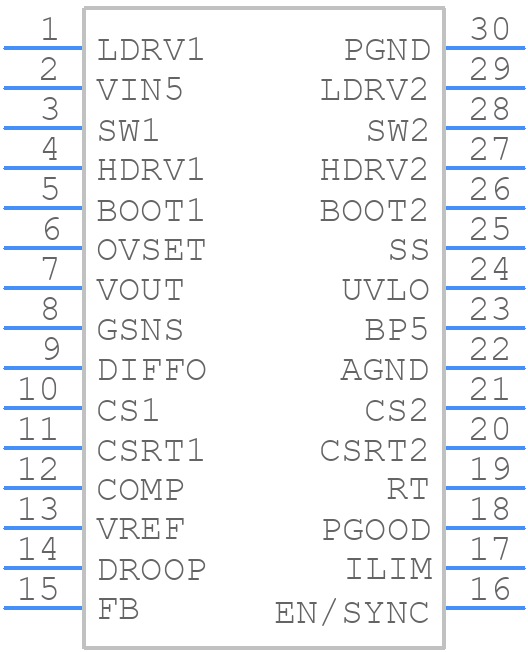

Use the download button to access the TPS40130DBTR schematic symbol, PCB footprint, and 3D model.
