Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency PCB design guidelines, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
The selection of input and output capacitors depends on the specific application requirements, such as the input voltage range, output voltage, and ripple current. A good starting point is to use X7R or X5R ceramic capacitors with a voltage rating of at least 1.5 times the maximum input voltage. The output capacitor should be selected based on the output voltage and ripple current requirements.
The TPS40131RHBT is rated for operation from -40°C to 125°C, but the maximum ambient temperature range may be limited by the specific application and the thermal design of the system. It's essential to ensure that the device operates within its specified temperature range to maintain reliability and performance.
To troubleshoot issues with the TPS40131RHBT, start by verifying the input voltage, output voltage, and current. Check the PCB layout and component selection to ensure they meet the recommended guidelines. Use an oscilloscope to measure the output voltage ripple and noise. If the issue persists, consult the datasheet and application notes, or contact Texas Instruments support for further assistance.
The TPS40131RHBT is a commercial-grade device, but it can be used in high-reliability or automotive applications with proper design, testing, and validation. However, it's essential to consult with Texas Instruments and follow their guidelines for using commercial-grade devices in high-reliability or automotive applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS40131RHBT Overview

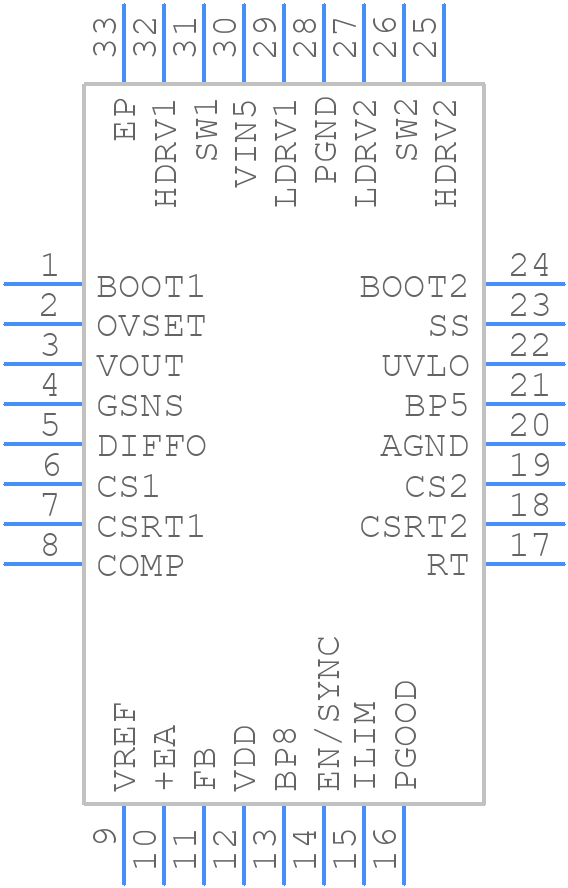

Use the download button to access the TPS40131RHBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS40,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
