A good PCB layout for the TPS40170MRGYTEP should include a solid ground plane, separate analog and digital grounds, and a decoupling capacitor (e.g., 10uF) between VIN and GND. Additionally, keep the input and output capacitors close to the device and use short, wide traces for the power paths.
Choose input capacitors with low ESR (Equivalent Series Resistance) and high ripple current rating. For output capacitors, select ones with low ESR, high capacitance, and a voltage rating that exceeds the output voltage. A good starting point is a 10uF ceramic capacitor for the input and a 22uF ceramic capacitor for the output.
The TPS40170MRGYTEP is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. Ensure proper thermal design and heat sinking to maintain a safe operating temperature.
Yes, the TPS40170MRGYTEP is AEC-Q100 qualified, making it suitable for automotive applications. Additionally, it is manufactured with high-reliability processes, making it suitable for high-reliability applications. However, ensure that you follow proper design and testing procedures to meet the specific requirements of your application.
To troubleshoot issues with the TPS40170MRGYTEP, start by verifying the input voltage, output voltage, and current. Check for proper PCB layout, decoupling, and thermal design. Use an oscilloscope to inspect the output voltage and current waveforms. Consult the datasheet and application notes for guidance on troubleshooting and design optimization.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS40170MRGYTEP Overview

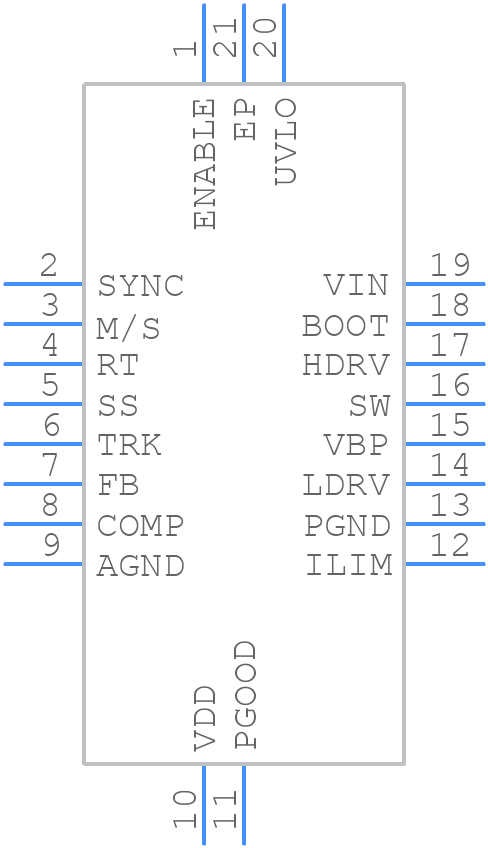

Use the download button to access the TPS40170MRGYTEP schematic symbol, PCB footprint, and 3D model.
