TPS40170RGYT - Texas Instruments

Description: Texas Instruments TPS40170RGYT, DC-DC Controller, 20A, 60 V Step-Down, 660 kHz, 20-Pin, VQFN

Download TPS40170RGYT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

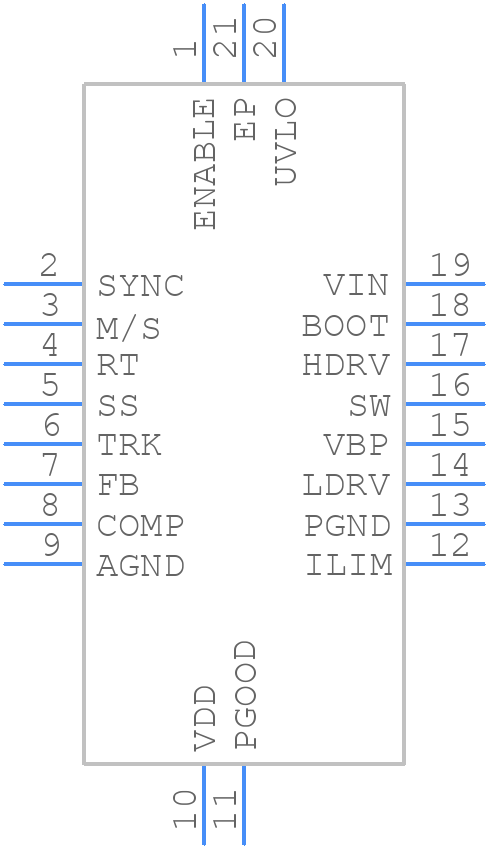

TPS40170RGYT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS40170RGYT - Texas Instruments PCB footprint - Other - Other - RGY0020A
click to zoom
3D Models
TPS40170RGYT - Texas Instruments - 3D model - Other - RGY0020A
click to zoom

TPS40170RGYT Details

  • Manufacturer Part Number:

    TPS40170RGYT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    20

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO OPERATES AT 8V OUTPUT

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PQCC-N20

  • JESD-609 Code:

    e4

  • Length:

    4.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    20 A

  • Output Voltage-Max:

    57 V

  • Output Voltage-Min:

    0.6 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    600 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.5 mm

TPS40170RGYT Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS40170RGYT involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. A 4-layer PCB with a dedicated power plane is recommended.
  • Choose input capacitors with a voltage rating of at least 1.5 times the maximum input voltage, and output capacitors with a voltage rating of at least 1.5 times the output voltage. The capacitance value depends on the specific application, but a general guideline is to use 10-22uF for the input capacitor and 22-47uF for the output capacitor.
  • The TPS40170RGYT is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the thermal design of the system. A general guideline is to keep the ambient temperature below 85°C for reliable operation.
  • The TPS40170RGYT has a built-in overcurrent protection feature that can be enabled by connecting a resistor between the OCSET pin and the GND pin. The value of the resistor determines the overcurrent threshold. A general guideline is to choose a resistor value that sets the overcurrent threshold to 1.5-2 times the maximum expected load current.
  • Yes, the TPS40170RGYT is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications, and is also suitable for use in industrial and medical applications that require high reliability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS40170RGYT Overview

Use the download button to access the TPS40170RGYT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS40, or try a keyword search, such as Switching Regulator or Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
