Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
The selection of input and output capacitors depends on the specific application requirements, such as the input voltage range, output voltage, and ripple current. A general rule of thumb is to choose capacitors with low ESR, high ripple current rating, and a voltage rating that exceeds the maximum input or output voltage. X5R or X7R ceramic capacitors are good options.
The TPS40180RGET is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's recommended to follow the thermal design guidelines in the datasheet to ensure reliable operation.
The TPS40180RGET has a built-in overcurrent protection feature that can be enabled by connecting a resistor between the OCP pin and the GND pin. The value of the resistor determines the overcurrent threshold. Additionally, an external current sense resistor can be used to monitor the output current and implement overcurrent protection.
Yes, the TPS40180RGET is qualified for automotive and high-reliability applications, and it meets the requirements of the AEC-Q100 standard. However, it's recommended to follow the specific requirements and guidelines for the target application, and to consult with Texas Instruments' technical support team for any specific questions or concerns.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS40180RGET Overview

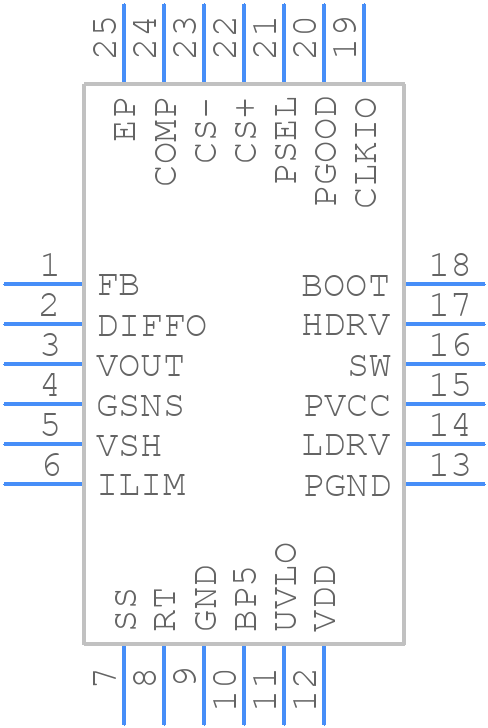

Use the download button to access the TPS40180RGET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS40,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
