Texas Instruments provides a recommended PCB layout in the datasheet (Figure 23) and in the application note SLVAE04. It's essential to follow these guidelines to minimize noise, ensure proper thermal dissipation, and optimize performance.
The input capacitor value depends on the input voltage, output voltage, and desired output ripple. A general guideline is to use a capacitor with a value between 10uF to 22uF, with a voltage rating of at least 1.5 times the maximum input voltage. Refer to the datasheet (Section 8.2.2) for more information.
The EN (Enable) pin is used to enable or disable the device. When EN is high, the device is enabled, and when EN is low, the device is disabled. This pin can be used to implement power sequencing, shutdown, or low-power modes. Connect EN to a logic-level signal or a voltage source (e.g., VCC) to enable the device.
The TPS40195RGYT has a thermal pad on the bottom of the package, which should be connected to a heat sink or a thermal plane on the PCB. Ensure good thermal conductivity by using a thermal interface material (TIM) and a heat sink with a sufficient thermal rating. Refer to the datasheet (Section 9.2) for thermal design considerations.
The internal soft-start feature helps reduce inrush current during startup. However, it may not be sufficient for all applications, especially those with high-capacitance output filters. In such cases, an external soft-start circuit may be necessary to ensure a controlled startup sequence.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS40195RGYT Overview

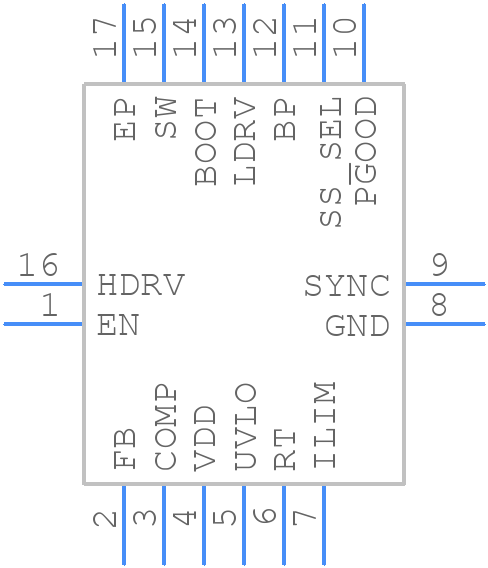

Use the download button to access the TPS40195RGYT schematic symbol, PCB footprint, and 3D model.
