Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency PCB design guidelines, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
The selection of input and output capacitors depends on the specific application requirements, such as the input voltage range, output voltage, and desired ripple and noise performance. TI provides guidelines for capacitor selection in the datasheet, but it's also important to consider factors such as capacitor ESR, ESL, and temperature coefficient.
The TPS40200DG4 is rated for operation from -40°C to 125°C, but the maximum ambient temperature range may be limited by the specific application and the thermal design of the system. It's important to ensure that the device is properly heatsinked and that the system is designed to operate within the specified temperature range.
The TPS40200DG4 has several configuration options, such as the output voltage and soft-start timing, that need to be set correctly for the specific application. TI provides a configuration guide in the datasheet, and it's also important to consult the application notes and design guides for specific guidance on configuring the device for the target application.
The TPS40200DG4 is a high-power device that requires proper thermal design to ensure reliable operation. Key considerations include the thermal resistance of the package, the thermal conductivity of the PCB material, and the airflow and heat sinking in the system. TI provides thermal design guidelines in the datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS40200DG4 Overview

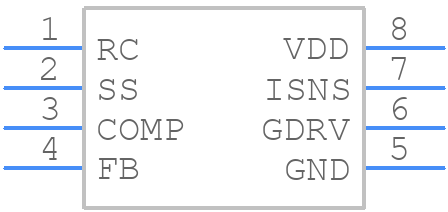

Use the download button to access the TPS40200DG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS40,
or try a keyword search, such as Switching Regulator or Controllers
