SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Surface Mount:
YES
Switcher Configuration:
BUCK-BOOST
Switching Frequency-Max:
1000 kHz
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
TPS40210DGQ Frequently Asked Questions (FAQs)
A good PCB layout for the TPS40210DGQ should include a solid ground plane, separate analog and digital grounds, and a decoupling capacitor (e.g., 10uF) between VIN and GND. Additionally, keep the input and output capacitors close to the device and use short, wide traces for the power paths.
Choose input capacitors with a voltage rating of at least 2x the input voltage, and output capacitors with a voltage rating of at least 2x the output voltage. For most applications, a 10uF ceramic capacitor is suitable for both input and output. However, for high-current or high-temperature applications, consider using a larger capacitor or a capacitor with a higher temperature rating.
The TPS40210DGQ can handle input voltages up to 18V, but it's recommended to keep the input voltage below 15V to ensure reliable operation and minimize power dissipation.
The output voltage of the TPS40210DGQ can be adjusted by connecting a resistor divider network between the VOUT pin and the GND pin. The output voltage is determined by the ratio of the resistors and the internal reference voltage (1.2V). Use the formula: VOUT = 1.2V x (R1 + R2) / R2.
The TPS40210DGQ can deliver up to 2A of output current, but the maximum current is dependent on the input voltage, output voltage, and ambient temperature. Be sure to check the device's thermal and electrical specifications to ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS40210DGQ Overview

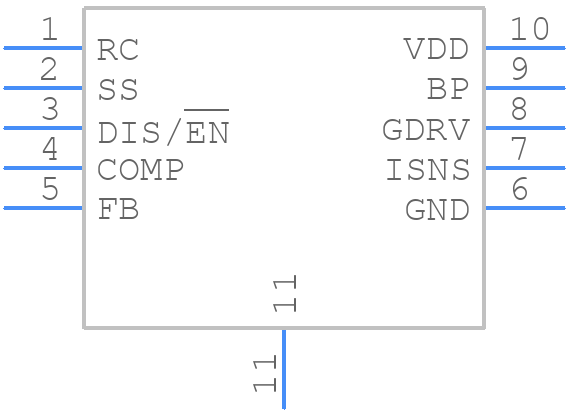

Use the download button to access the TPS40210DGQ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS40,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
