Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency PCB design guidelines, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
The selection of input and output capacitors depends on the specific application requirements, such as the input voltage range, output voltage, and ripple current. A good starting point is to use X5R or X7R ceramic capacitors with a voltage rating of at least 2x the input voltage, and a capacitance value of 10uF to 22uF for the input capacitor and 22uF to 47uF for the output capacitor.
The TPS40222DRPT has an operating junction temperature range of -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the thermal design of the system. As a general rule, the ambient temperature should be kept below 85°C to ensure reliable operation.
The power dissipation of the TPS40222DRPT can be calculated using the equation: Pd = (Vin - Vout) x Iout x Efficiency. The efficiency of the device can be found in the datasheet, and the input and output voltages and currents should be measured or calculated based on the specific application requirements.
The recommended input voltage range for the TPS40222DRPT is 2.7V to 5.5V, but the device can operate with input voltages as low as 2.5V and as high as 6V. However, the output voltage regulation and efficiency may be affected at these extreme input voltage ranges.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS40222DRPT Overview

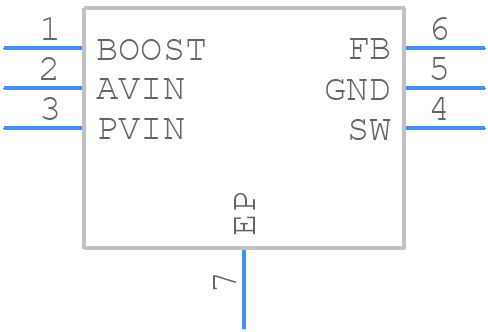

Use the download button to access the TPS40222DRPT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS40,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
