TPS40322RHBT - Texas Instruments

Description: Dual Output or Two-phase Synchronous Buck Controller

Download TPS40322RHBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

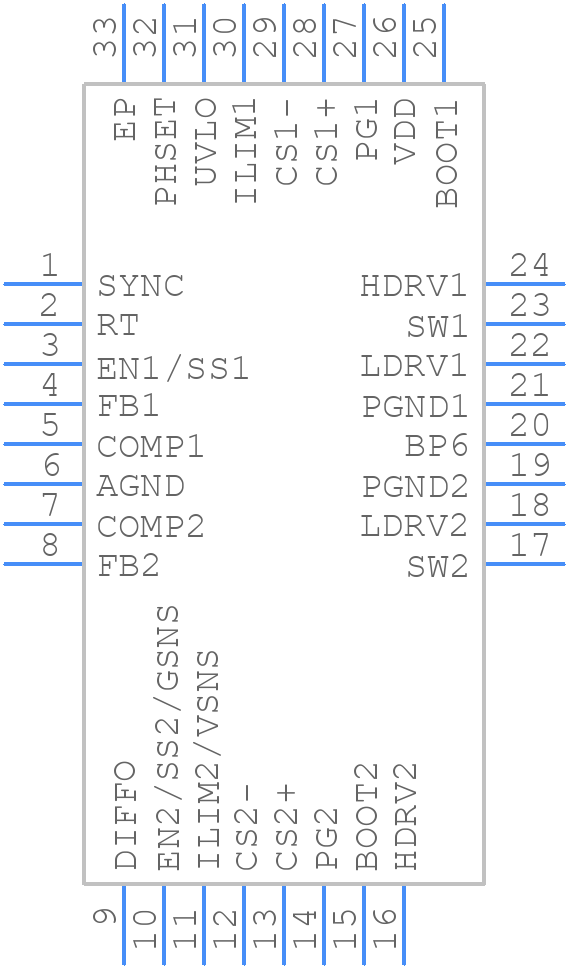

TPS40322RHBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS40322RHBT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB (S-PVQFN-N32)_1
click to zoom
3D Models
TPS40322RHBT - Texas Instruments - 3D model - Quad Flat No-Lead - RHB (S-PVQFN-N32)_1
click to zoom

TPS40322RHBT Details

  • Manufacturer Part Number:

    TPS40322RHBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    32

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    OPERATES IN ADJUSTABLE MODE FROM 0.6 TO 5.6V

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    60 A

  • Output Voltage-Max:

    5.6 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    PHASE-SHIFT

  • Switching Frequency-Max:

    1000 kHz

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

TPS40322RHBT Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS40322RHBT involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. TI provides a recommended layout in the datasheet and application notes.
  • Choose input capacitors with low ESR and high ripple current rating. For output capacitors, select ones with low ESR and high capacitance. TI recommends using ceramic or polymer capacitors with X5R or X7R dielectrics. Refer to the datasheet for specific recommendations.
  • The TPS40322RHBT is rated for operation from -40°C to 125°C. However, the maximum ambient temperature range depends on the specific application and thermal design. Refer to the datasheet for thermal derating information.
  • Yes, the TPS40322RHBT is AEC-Q100 qualified and suitable for automotive and high-reliability applications. However, ensure that you follow the recommended design and layout guidelines to ensure reliable operation.
  • Use an oscilloscope to monitor the input and output voltages, and check for signs of oscillation or ringing. Verify that the input and output capacitors are properly selected and placed. Check for thermal issues by monitoring the device temperature and ensuring proper heat sinking.
