TPS40345DRCR - Texas Instruments

Description: DC/DC Cntrlr Single-OUT Step Down 660kHz 10-Pin VSON EP T/R

Download TPS40345DRCR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

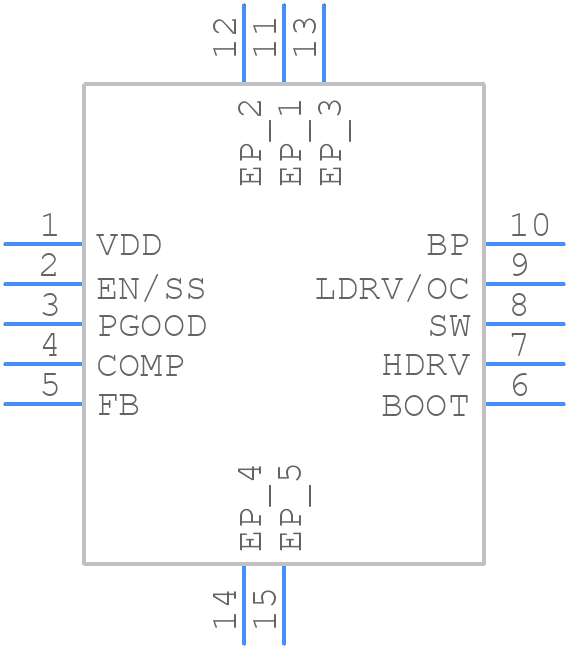

TPS40345DRCR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS40345DRCR - Texas Instruments PCB footprint - Other - Other - DRC0010J-1
click to zoom
3D Models
TPS40345DRCR - Texas Instruments - 3D model - Other - DRC0010J-1
click to zoom

TPS40345DRCR Details

  • Manufacturer Part Number:

    TPS40345DRCR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-12-19

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    20 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Current-Max:

    25 A

  • Output Voltage-Max:

    18 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    600 kHz

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS40345DRCR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS40345DRCR involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. TI provides a recommended layout in the datasheet and application notes.
  • Choose input capacitors with low ESR and high ripple current rating. For output capacitors, select ones with low ESR and high capacitance. TI recommends using ceramic or polymer capacitors with X5R or X7R dielectrics. Refer to the datasheet for specific recommendations.
  • The TPS40345DRCR is rated for operation from -40°C to 125°C. However, the maximum ambient temperature range depends on the specific application and thermal design. Consult the datasheet and thermal design guidelines for more information.
  • The TPS40345DRCR has a built-in overcurrent protection feature. To implement it, connect a sense resistor (Rs) between the output and the GND pin. The device will limit the output current to the programmed value when the voltage across Rs exceeds the internal threshold. Refer to the datasheet for more information.
  • Yes, the TPS40345DRCR can be used in a synchronous buck configuration. However, this requires additional external components, such as a synchronous rectifier FET and a bootstrap capacitor. Consult the datasheet and application notes for more information.
