A good PCB layout for the TPS40400RHLR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate power plane for the input voltage and to keep the noise-sensitive analog circuitry away from the switching components.
When selecting input and output capacitors for the TPS40400RHLR, consider the voltage rating, capacitance value, and equivalent series resistance (ESR). A general rule of thumb is to choose capacitors with a voltage rating at least 1.5 times the input voltage, and a capacitance value that meets the recommended range in the datasheet. Low-ESR capacitors are recommended to minimize energy losses.
The TPS40400RHLR is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's essential to ensure that the device's junction temperature stays within the recommended range to prevent overheating and ensure reliable operation.
Yes, the TPS40400RHLR is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications and is manufactured using a high-reliability process. However, it's essential to follow the recommended design and manufacturing guidelines to ensure the device meets the specific requirements of the application.
To troubleshoot issues with the TPS40400RHLR, start by verifying the input voltage, output voltage, and current levels. Check the PCB layout and component selection to ensure they meet the recommended guidelines. Use an oscilloscope to monitor the output voltage and current waveforms, and check for signs of oscillation or instability. If the issue persists, consult the datasheet and application notes for guidance, or contact Texas Instruments' technical support for further assistance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS40400RHLR Overview

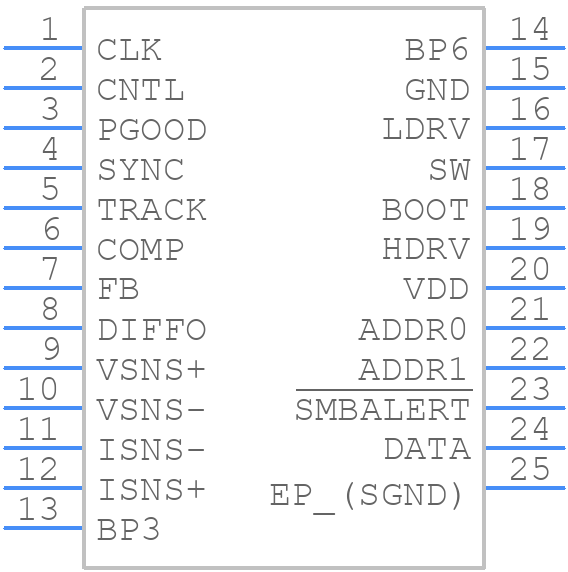

Use the download button to access the TPS40400RHLR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS40,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
