Texas Instruments provides a recommended PCB layout in the TPS43000PW evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management. Following this layout can help minimize noise, reduce electromagnetic interference (EMI), and ensure optimal thermal performance.
The input capacitor selection depends on the input voltage, output voltage, and output current requirements. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value of 10-22 μF. Additionally, consider the capacitor's equivalent series resistance (ESR) and ensure it is compatible with the TPS43000PW's input impedance.
The TPS43000PW is capable of delivering up to 3 A of output current, but this depends on the input voltage, output voltage, and thermal conditions. It's essential to check the device's thermal derating curves and ensure the output current is within the recommended limits to prevent overheating and ensure reliable operation.
The TPS43000PW has a built-in overcurrent protection (OCP) feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The OCP threshold can be set by selecting the appropriate resistor value. Additionally, the device has a hiccup mode that can be enabled to prevent damage from repeated overcurrent events.
The EN (enable) pin is used to turn the device on or off. When the EN pin is pulled high, the device is enabled, and when it's pulled low, the device is disabled. This pin can be used to implement power sequencing, shutdown, or low-power modes in the system. Ensure the EN pin is properly biased and decoupled to prevent unwanted device behavior.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS43000PW Overview

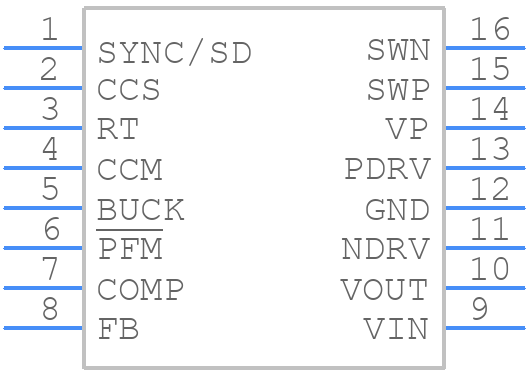

Use the download button to access the TPS43000PW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS43,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
